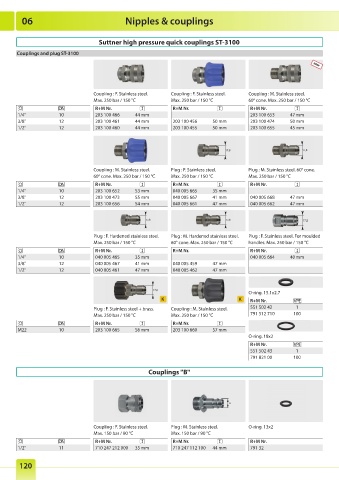

Page 121 - RM_2022

06 Nipples & couplings

Suttner high pressure quick couplings ST-3100
Couplings and plug ST-3100 new

Coupling : F. Stainless steel. Coupling : F. Stainless steel. Coupling : M. Stainless steel.
Max. 250 bar / 150 °C Max. 250 bar / 150 °C 60° cone. Max. 250 bar / 150 °C
R+M Nr. R+M Nr. R+M Nr.
1/4" 10 203 100 466 44 mm 203 100 653 47 mm
3/8" 12 203 100 461 44 mm 203 100 456 50 mm 203 100 474 50 mm
1/2" 12 203 100 460 44 mm 203 100 455 50 mm 203 100 655 45 mm

17,8 17,8

Coupling : M. Stainless steel. Plug : F. Stainless steel. Plug : M. Stainless steel. 60° cone.
60° cone. Max. 250 bar / 150 °C Max. 250 bar / 150 °C Max. 250 bar / 150 °C
R+M Nr. R+M Nr. R+M Nr.
1/4" 10 203 100 652 53 mm 040 005 665 35 mm
3/8" 12 203 100 473 55 mm 040 005 667 41 mm 040 005 668 47 mm
1/2" 12 203 100 656 54 mm 040 005 661 47 mm 040 005 662 47 mm

17,8 17,8 17,8

Plug : F. Hardened stainless steel. Plug : M. Hardened stainless steel. Plug : F. Stainless steel. For moulded
Max. 250 bar / 150 °C 60° cone. Max. 250 bar / 150 °C handles. Max. 250 bar / 150 °C
R+M Nr. R+M Nr. R+M Nr.
1/4" 10 040 005 465 35 mm 040 005 664 40 mm
3/8" 12 040 005 467 41 mm 040 005 459 47 mm
1/2" 12 040 005 461 47 mm 040 005 462 47 mm

17,8
O-ring. 15.1x2.7
K K R+M Nr.
Plug : F. Stainless steel + brass. Coupling : M. Stainless steel. 551 502 42 1
Max. 250 bar / 150 °C Max. 250 bar / 150 °C 791 512 710 100
R+M Nr. R+M Nr.
M22 10 203 100 665 56 mm 203 100 660 57 mm
O-ring. 18x2
R+M Nr.
551 502 43 1
791 821 00 100

Couplings "B"

13

Coupling : F. Stainless steel. Plug : M. Stainless steel. O-ring. 13x2
Max. 150 bar / 90 °C Max. 150 bar / 90 °C
R+M Nr. R+M Nr. R+M Nr.
1/2" 11 710 247 212 000 35 mm 710 247 112 100 44 mm 791 32

120
