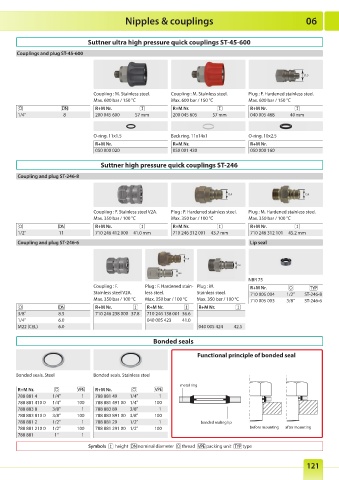

Nipples & couplings 06

Suttner ultra high pressure quick couplings ST-45-600
Couplings and plug ST-45-600

21,5

Coupling : M. Stainless steel. Coupling : M. Stainless steel. Plug : F. Hardened stainless steel.
Max. 600 bar / 150 °C Max. 600 bar / 150 °C Max. 600 bar / 150 °C
R+M Nr. R+M Nr. R+M Nr.
1/4" 8 200 045 600 57 mm 200 045 605 57 mm 040 005 468 40 mm

O-ring. 11x1.5 Back ring. 11x14x1 O-ring. 10x2.5
R+M Nr. R+M Nr. R+M Nr.
050 000 020 050 001 430 050 000 160

Suttner high pressure quick couplings ST-246
Coupling and plug ST-246-8

15,8 15,8

Coupling : F. Stainless steel V2A. Plug : F. Hardened stainless steel. Plug : M. Hardened stainless steel.
Max. 350 bar / 100 °C Max. 350 bar / 100 °C Max. 350 bar / 100 °C
R+M Nr. R+M Nr. R+M Nr.
1/2" 11 710 246 412 000 41.0 mm 710 246 312 001 43.7 mm 710 246 312 101 45.2 mm
Coupling and plug ST-246-6 Lip seal

12,8
12,8
12,5
NBR 75
Coupling : F. Plug : F. Hardened stain- Plug : M. R+M Nr.
Stainless steel V2A. less steel. Stainless steel. 710 005 004 1/2" ST-246-8
Max. 350 bar / 100 °C Max. 350 bar / 100 °C Max. 350 bar / 100 °C 710 005 003 3/8" ST-246-6
R+M Nr. R+M Nr. R+M Nr.
3/8" 8.5 710 246 238 000 37.8 710 246 138 001 36.6
1/4" 6.0 040 005 423 41.0
M22 (CEL) 6.0 040 005 424 42.5

Bonded seals

Functional principle of bonded seal

Bonded seals. Steel Bonded seals. Stainless steel
metal ring
R+M Nr. R+M Nr.
788 881 4 1/4" 1 788 881 49 1/4" 1
788 881 410 0 1/4" 100 788 881 491 00 1/4" 100
788 883 8 3/8" 1 788 883 89 3/8" 1
788 883 810 0 3/8" 100 788 883 891 00 3/8" 100
788 881 2 1/2" 1 788 881 29 1/2" 1 bonded sealing lip
788 881 210 0 1/2" 100 788 881 291 00 1/2" 100 before mounting after mounting
788 881 1" 1
Symbols height nominal diameter thread packing unit type
