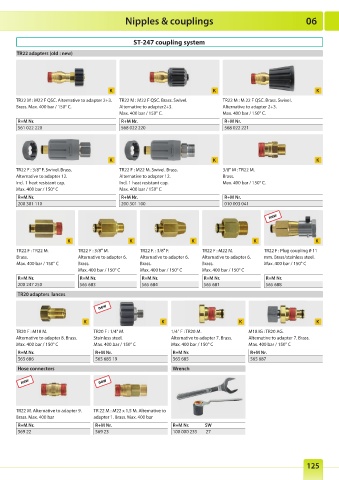

Page 126 - RM_2022

Nipples & couplings 06

ST-247 coupling system
TR22 adapters (old : new)

K K K
TR22 M : M22 F QSC. Alternative to adapter 2+3. TR22 M : M22 F QSC. Brass. Swivel. TR22 M : M 22 F QSC. Brass. Swivel.
Brass. Max. 400 bar / 150° C. Alternative to adapter2+3. Alternative to adapter 2+3.
Max. 400 bar / 150° C. Max. 400 bar / 150° C.
R+M Nr. R+M Nr. R+M Nr.
561 022 220 568 022 220 568 022 221

K K K
TR22 F : 3/8" F. Swivel. Brass. TR22 F : M22 M. Swivel. Brass. 3/8" M : TR22 M.
Alternative to adapter 12. Alternative to adapter 12. Brass.
Incl. 1 heat resistant cap. Incl. 1 heat resistant cap. Max. 400 bar / 150° C.
Max. 400 bar / 150° C Max. 400 bar / 150° C
R+M Nr. R+M Nr. R+M Nr.
200 301 110 200 301 100 010 003 041

new

K K K K K
TR22 F : TR22 M. TR22 F : 3/8" M. TR22 F. : 3/8" F. TR22 F : M22 M. TR22 F : Plug coupling  11
Brass. Alternative to adapter 6. Alternative to adapter 6. Alternative to adapter 6. mm. Brass/stainless steel.
Max. 400 bar / 150° C Brass. Brass. Brass. Max. 400 bar / 150° C
Max. 400 bar / 150° C Max. 400 bar / 150° C Max. 400 bar / 150° C
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 247 250 565 683 565 684 565 681 565 688
TR20 adapters lances
new

K K K K
TR20 F : M18 M. TR20 F : 1/4" M. 1/4" F : TR20 M. M18 IG : TR20 AG.
Alternative to adapter 8. Brass. Stainless steel. Alternative to adapter 7. Brass. Alternative to adapter 7. Brass.
Max. 400 bar / 150° C Max. 400 bar / 150° C Max. 400 bar / 150° C Max. 400 bar / 150° C
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
565 686 565 685 19 565 685 565 687
Hose connectors Wrench

new new

TR22 M. Alternative to adapter 9. TR 22 M : M22 x 1,5 M. Alternative to
Brass. Max. 400 bar adapter 1. Brass. Max. 400 bar
R+M Nr. R+M Nr. R+M Nr. SW
569 22 569 23 100 000 235 27

125
