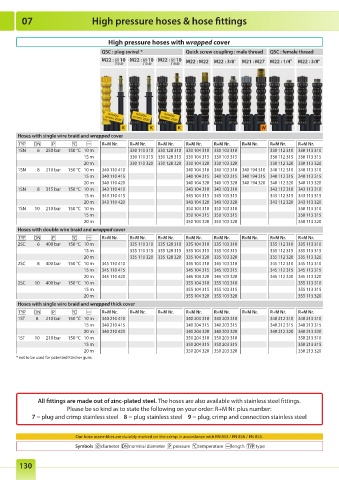

07                      High pressure hoses & hose fittings



                                       High pressure hoses with wrapped cover
                                     QSC : plug swivel *          Quick screw coupling : male thread  QSC : female thread
                                     M22 :   10 M22 :   10 M22 :   10  M22 : M22  M22 : 3/8"  M21 : M27  M22 : 1/4"  M22 : 3/8"
                                         (15.5)    (15.5)    (18.0)









                                                 suitable
                                       suitable
                                                           suitable
                                      system 2000
                                            K   system 2000 K  system 2000 K                 W
       Hoses with single wire braid and wrapped cover
                                     R+M Nr.   R+M Nr.   R+M Nr.  R+M Nr.   R+M Nr.   R+M Nr.   R+M Nr.   R+M Nr.
       1SN     6   250 bar   150 °C  10 m      330 110 310  330 128 310  330 104 310  330 103 310  330 112 310  330 113 310
                              15 m             330 110 315  330 128 315  330 104 315  330 103 315  330 112 315  330 113 315
                              20 m             330 110 320  330 128 320  330 104 320  330 103 320  330 112 320  330 113 320
       1SN     8   210 bar   150 °C  10 m  340 110 410            340 104 310  340 103 310  340 194 310  340 112 310  340 113 310
                              15 m   340 110 415                  340 104 315  340 103 315  340 194 315  340 112 315  340 113 315
                              20 m   340 110 420                  340 104 320  340 103 320  340 194 320  340 112 320  340 113 320
       1SN     8   315 bar   150 °C  10 m  343 110 410            343 104 310  343 103 310      343 112 310  343 113 310
                              15 m   343 110 415                  343 104 315  343 103 315      343 112 315  343 113 315
                              20 m   343 110 420                  343 104 320  343 103 320      343 112 320  343 113 320
       1SN   10   210 bar   150 °C  10 m                          350 104 310  350 103 310                350 113 310
                              15 m                                350 104 315  350 103 315                350 113 315
                              20 m                                350 104 320  350 103 320                350 113 320
       Hoses with double wire braid and wrapped cover
                                     R+M Nr.   R+M Nr.   R+M Nr.  R+M Nr.   R+M Nr.   R+M Nr.   R+M Nr.   R+M Nr.
       2SC     6   400 bar   150 °C  10 m      335 110 310  335 128 310  335 104 310  335 103 310  335 112 310  335 113 310
                              15 m             335 110 315  335 128 315  335 104 315  335 103 315  335 112 315  335 113 315
                              20 m             335 110 320  335 128 320  335 104 320  335 103 320  335 112 320  335 113 320
       2SC     8   400 bar   150 °C  10 m  345 110 410            345 104 310  345 103 310      345 112 310  345 113 310
                              15 m   345 110 415                  345 104 315  345 103 315      345 112 315  345 113 315
                              20 m   345 110 420                  345 104 320  345 103 320      345 112 320  345 113 320
       2SC   10   400 bar   150 °C  10 m                          355 104 310  355 103 310                355 113 310
                              15 m                                355 104 315  355 103 315                355 113 315
                              20 m                                355 104 320  355 103 320                355 113 320
       Hoses with single wire braid and wrapped thick cover
                                     R+M Nr.   R+M Nr.   R+M Nr.  R+M Nr.   R+M Nr.   R+M Nr.   R+M Nr.   R+M Nr.
       1ST    8   210 bar   150 °C  10 m  340 210 410             340 204 310  340 203 310      340 212 310  340 213 310
                              15 m   340 210 415                  340 204 315  340 203 315      340 212 315  340 213 315
                              20 m   340 210 420                  340 204 320  340 203 320      340 212 320  340 213 320
       1ST   10   210 bar   150 °C  10 m                          350 204 310  350 203 310                350 213 310
                              15 m                                350 204 315  350 203 315                350 213 315
                              20 m                                350 204 320  350 203 320                350 213 320
       * not to be used for patented Kärcher guns.







              All fittings are made out of zinc-plated steel. The hoses are also available with stainless steel fittings.
                         Please be so kind as to state the following on your order: R+M Nr. plus number:
            7 = plug and crimp stainless steel    8 = plug stainless steel    9 = plug, crimp and connection stainless steel


                            Our hose assemblies are durably marked on the crimp in accordance with EN 853 / EN 856 / EN 855.
                            Symbols     diameter     nominal diameter     pressure     temperature    length     type
