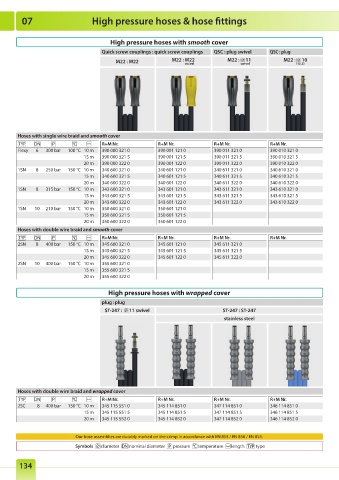

07 High pressure hoses & hose fittings

High pressure hoses with smooth cover
Quick screw couplings : quick screw couplings QSC : plug swivel QSC : plug
M22 : M22 M22 : M22 M22 : 11 M22 : 10
swivel
(15.5)
swivel

Hoses with single wire braid and smooth cover
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
Flexy 6 300 bar 100 °C 10 m 390 000 321 0 390 001 121 0 390 011 321 0 390 010 321 0
15 m 390 000 321 5 390 001 121 5 390 011 321 5 390 010 321 5
20 m 390 000 322 0 390 001 122 0 390 011 322 0 390 010 322 0
1SN 8 250 bar 150 °C 10 m 340 600 321 0 340 601 121 0 340 611 321 0 340 610 321 0
15 m 340 600 321 5 340 601 121 5 340 611 321 5 340 610 321 5
20 m 340 600 322 0 340 601 122 0 340 611 322 0 340 610 322 0
1SN 8 315 bar 150 °C 10 m 343 600 321 0 343 601 121 0 343 611 321 0 343 610 321 0
15 m 343 600 321 5 343 601 121 5 343 611 321 5 343 610 321 5
20 m 343 600 322 0 343 601 122 0 343 611 322 0 343 610 322 0
1SN 10 210 bar 150 °C 10 m 350 600 321 0 350 601 121 0
15 m 350 600 321 5 350 601 121 5
20 m 350 600 322 0 350 601 122 0
Hoses with double wire braid and smooth cover
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
2SN 8 400 bar 150 °C 10 m 345 600 321 0 345 601 121 0 345 611 321 0
15 m 345 600 321 5 345 601 121 5 345 611 321 5
20 m 345 600 322 0 345 601 122 0 345 611 322 0
2SN 10 400 bar 150 °C 10 m 355 600 321 0
15 m 355 600 321 5
20 m 355 600 322 0

High pressure hoses with wrapped cover
plug : plug
ST-247 : 11 swivel ST-247 : ST-247
stainless steel

Hoses with double wire braid and wrapped cover
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
2SC 8 400 bar 150 °C 10 m 345 115 551 0 345 114 851 0 347 114 851 0 346 114 851 0
15 m 345 115 551 5 345 114 851 5 347 114 851 5 346 114 851 5
20 m 345 115 552 0 345 114 852 0 347 114 852 0 346 114 852 0

Our hose assemblies are durably marked on the crimp in accordance with EN 853 / EN 856 / EN 855.
Symbols diameter nominal diameter pressure temperature length type
