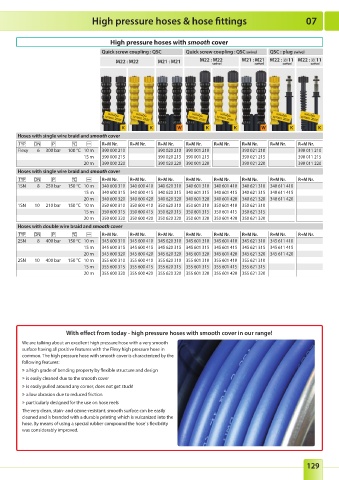

High pressure hoses & hose fittings 07

High pressure hoses with smooth cover
Quick screw coupling : QSC Quick screw coupling : QSC swivel QSC : plug swivel
M22 : M22 M21 : M21 M22 : M22 M21 : M21 M22 : 11 M22 : 11
swivel
swivel
swivel
swivel

suitable
suitable
suitable
suitable
suitable
suitable
system 2000
K system 2000 K W system 2000 K system 2000 K W system 2000 K system 2000 K
Hoses with single wire braid and smooth cover
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
Flexy 6 300 bar 100 °C 10 m 390 000 210 390 020 210 390 001 210 390 021 210 390 011 210
15 m 390 000 215 390 020 215 390 001 215 390 021 215 390 011 215
20 m 390 000 220 390 020 220 390 001 220 390 021 220 390 011 220
Hoses with single wire braid and smooth cover
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
1SN 8 250 bar 150 °C 10 m 340 600 310 340 600 410 340 620 310 340 601 310 340 601 410 340 621 310 340 611 410
15 m 340 600 315 340 600 415 340 620 315 340 601 315 340 601 415 340 621 315 340 611 415
20 m 340 600 320 340 600 420 340 620 320 340 601 320 340 601 420 340 621 320 340 611 420
1SN 10 210 bar 150 °C 10 m 350 600 310 350 600 410 350 620 310 350 601 310 350 601 410 350 621 310
15 m 350 600 315 350 600 415 350 620 315 350 601 315 350 601 415 350 621 315
20 m 350 600 320 350 600 420 350 620 320 350 601 320 350 601 420 350 621 320
Hoses with double wire braid and smooth cover
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
2SN 8 400 bar 150 °C 10 m 345 600 310 345 600 410 345 620 310 345 601 310 345 601 410 345 621 310 345 611 410
15 m 345 600 315 345 600 415 345 620 315 345 601 315 345 601 415 345 621 315 345 611 415
20 m 345 600 320 345 600 420 345 620 320 345 601 320 345 601 420 345 621 320 345 611 420
2SN 10 400 bar 150 °C 10 m 355 600 310 355 600 410 355 620 310 355 601 310 355 601 410 355 621 310
15 m 355 600 315 355 600 415 355 620 315 355 601 315 355 601 415 355 621 315
20 m 355 600 320 355 600 420 355 620 320 355 601 320 355 601 420 355 621 320

With effect from today - high pressure hoses with smooth cover in our range!

We are talking about an excellent high pressure hose with a very smooth
surface having all positive features with the Flexy high pressure hose in
common. The high pressure hose with smooth cover is characterized by the
following features:
» a high grade of bending property by flexible structure and design
» is easily cleaned due to the smooth cover
» is easily pulled around any corner, does not get stuck!
» a low abrasion due to reduced friction
» particularly designed for the use on hose reels
The very clean, stain- and ozone-resistant, smooth surface can be easily
cleaned and is branded with a durable printing which is vulcanized into the
hose. By means of using a special rubber compound the hose`s flexibility
was considerably improved.
