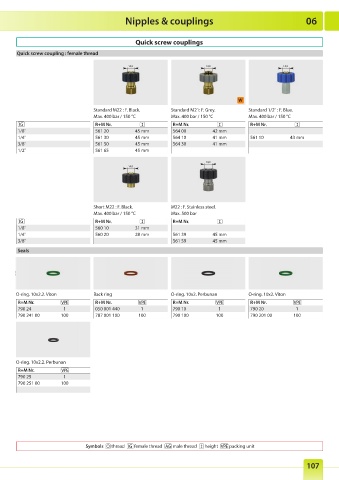

P. 108
Nipples & couplings 06
Quick screw couplings
Quick screw coupling : female thread
14,0 14,0 14,0
W
Standard M22 : F. Black. Standard M21: F. Grey. Standard 1/2" : F. Blue.
Max. 400 bar / 150 °C Max. 400 bar / 150 °C Max. 400 bar / 150 °C
R+M Nr. R+M Nr. R+M Nr.
1/8" 561 20 45 mm 564 00 42 mm
1/4" 561 30 45 mm 564 10 41 mm 561 10 43 mm
3/8" 561 50 45 mm 564 30 41 mm
1/2" 561 65 45 mm
14,0
14,0
Short M22 : F. Black. M22 : F. Stainless steel.
Max. 400 bar / 150 °C Max. 500 bar
R+M Nr. R+M Nr.
1/8" 560 10 31 mm
1/4" 560 20 28 mm 561 39 45 mm
3/8" 561 59 45 mm
Seals
O-ring. 10x2.2. Viton Back ring O-ring. 10x2. Perbunan O-ring. 10x2. Viton
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
790 24 1 050 001 440 1 790 10 1 790 20 1
790 241 00 100 787 001 100 100 790 100 100 790 201 00 100
O-ring. 10x2.2. Perbunan
R+M Nr.
790 25 1
790 251 00 100
Symbols thread female thread male thread height packing unit
