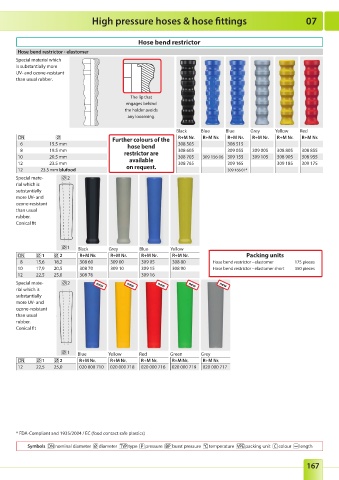

High pressure hoses & hose fittings 07

Hose bend restrictor
Hose bend restrictor - elastomer
Special material which
is substantially more
UV- and ozone-resistant
than usual rubber.

The lip that
engages behind
the holder avoids
any loosening.

Black Blue Blue Grey Yellow Red
Further colours of the R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
6 15.5 mm hose bend 308 505 308 515
8 19.5 mm 308 605 309 055 309 005 308 805 308 855
restrictor are
10 20.5 mm 308 705 309 156 06 309 155 309 105 308 905 308 955
12 23.5 mm available 308 765 309 165 309 185 309 175
12 23.5 mm blufood on request. 309 166 01*
Special mate- 2
rial which is
substantially
more UV- and
ozone-resistant
than usual
rubber.
Conical fit

1 Black Grey Blue Yellow
1 2 R+M Nr. R+M Nr. R+M Nr. R+M Nr. Packing units
8 15,6 18,2 308 60 309 00 309 05 308 80 Hose bend restrictor - elastomer 175 pieces
10 17,9 20,5 308 70 309 10 309 15 308 90 Hose bend restrictor - elastomer short 350 pieces
12 22,5 25,0 308 76 309 16
Special mate- 2 new new new new new
rial which is
substantially
more UV- and
ozone-resistant
than usual
rubber.
Conical fit

1 Blue Yellow Red Green Grey
1 2 R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
12 22,5 25,0 020 000 710 020 000 718 020 000 716 020 000 719 020 000 717

* FDA-Compliant and 1935/2004 / EC (food contact safe plastics)

Symbols nominal diameter diameter type pressure burst pressure temperature packing unit colour length
