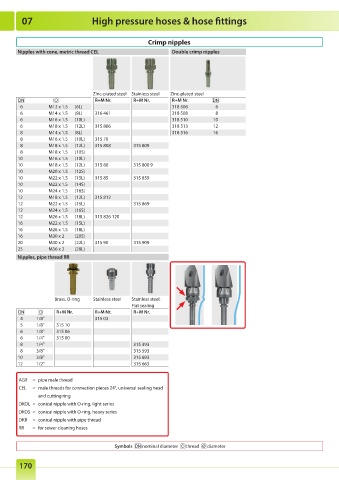

07 High pressure hoses & hose fittings

Crimp nipples
Nipples with cone, metric thread CEL Double crimp nipples

Zinc-plated steel Stainless steel Zinc-plated steel
R+M Nr. R+M Nr. R+M Nr.
6 M12 x 1.5 (6L) 318 506 6
6 M14 x 1.5 (8L) 316 461 318 508 8
6 M16 x 1.5 (10L) 318 510 10
6 M18 x 1.5 (12L) 315 806 318 513 12
8 M14 x 1.5 (8L) 318 516 16
8 M16 x 1.5 (10L) 315 70
8 M18 x 1.5 (12L) 315 808 315 809
8 M18 x 1.5 (10S)
10 M16 x 1.5 (10L)
10 M18 x 1.5 (12L) 315 80 315 800 9
10 M20 x 1.5 (12S)
10 M22 x 1.5 (15L) 315 85 315 859
10 M22 x 1.5 (14S)
10 M24 x 1.5 (16S)
12 M18 x 1.5 (12L) 315 812
12 M22 x 1.5 (15L) 315 869
12 M24 x 1.5 (16S)
12 M26 x 1.5 (18L) 315 826 120
16 M22 x 1.5 (15L)
16 M26 x 1.5 (18L)
16 M30 x 2 (20S)
20 M30 x 2 (22L) 315 90 315 909
25 M36 x 2 (28L)
Nipples, pipe thread RR

Brass. O-ring Stainless steel Stainless steel.
Flat sealing
R+M Nr. R+M Nr. R+M Nr.
4 1/8" 315 03
5 1/8" 315 10
6 1/8" 315 06
6 1/4" 315 00
8 1/4" 315 393
8 3/8" 315 593
10 3/8" 315 693
12 1/2" 315 663

AGR = pipe male thread
CEL = male threads for connection pieces 24°, universal sealing head
and cutting ring
DKOL = conical nipple with O-ring, light series

DKOS = conical nipple with O-ring, heavy series
DKR = conical nipple with pipe thread

RR = for sewer cleaning hoses

Symbols nominal diameter thread diameter

170
