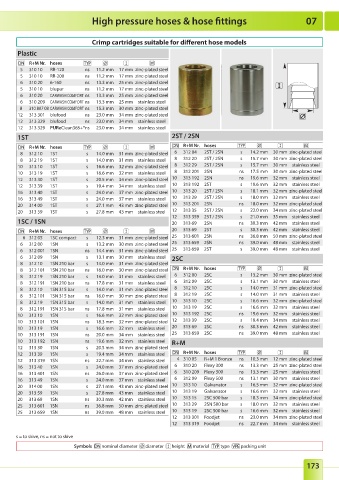

Page 174 - RM_2022

High pressure hoses & hose fittings 07

Crimp cartridges suitable for different hose models
Plastic
R+M Nr. hoses
5 310 10 RR-120 ns 11.2 mm 17 mm zinc-plated steel
5 310 10 RR-200 ns 11.2 mm 17 mm zinc-plated steel
6 310 20 6-160 ns 13.3 mm 25 mm zinc-plated steel
5 310 10 blupur ns 11.2 mm 17 mm zinc-plated steel
6 310 20 CARWASH COMFORT ns 13.3 mm 25 mm zinc-plated steel
6 310 209 CARWASH COMFORT ns 13.3 mm 25 mm stainless steel
8 310 807 08 CARWASH COMFORT ns 15.3 mm 30 mm zinc-plated steel
12 313 301 blufood ns 23.0 mm 34 mm zinc-plated steel
12 313 329 blufood ns 23.0 mm 34 mm stainless steel
12 313 329 PUReClean365+® ns 23.0 mm 34 mm stainless steel
1ST 2ST / 2SN
R+M Nr. hoses R+M Nr. hoses
8 312 10 1ST s 14.0 mm 31 mm zinc-plated steel 6 312 04 2ST / 2SN s 14.2 mm 30 mm zinc-plated steel
8 312 19 1ST s 14.0 mm 31 mm stainless steel 8 312 20 2ST / 2SN s 15.7 mm 30 mm zinc-plated steel
10 313 10 1ST s 16.6 mm 32 mm zinc-plated steel 8 312 29 2ST / 2SN s 15.7 mm 30 mm stainless steel
10 313 19 1ST s 16.6 mm 32 mm stainless steel 8 312 201 2SN ns 17.5 mm 30 mm zinc-plated steel
12 313 30 1ST s 20.5 mm 34 mm zinc-plated steel 10 313 192 2SN ns 19.6 mm 32 mm stainless steel
12 313 39 1ST s 19.4 mm 34 mm stainless steel 10 313 192 2ST s 19.6 mm 32 mm stainless steel
16 313 40 1ST s 24.0 mm 37 mm zinc-plated steel 10 313 20 2ST / 2SN s 18.1 mm 32 mm zinc-plated steel
16 313 49 1ST s 24.0 mm 37 mm stainless steel 10 313 29 2ST / 2SN s 18.0 mm 32 mm stainless steel
20 314 00 1ST s 27.1 mm 43 mm zinc-plated steel 10 313 201 2SN ns 18.0 mm 32 mm zinc-plated steel
20 313 59 1ST s 27.8 mm 43 mm stainless steel 12 313 35 2ST / 2SN s 22.0 mm 34 mm zinc-plated steel
12 313 359 2ST / 2SN s 21.0 mm 35 mm stainless steel
1SC / 1SN 20 313 69 2SN ns 30.3 mm 42 mm stainless steel
R+M Nr. hoses 20 313 69 2ST s 30.3 mm 42 mm stainless steel
6 312 05 1SC compact s 12.3 mm 31 mm zinc-plated steel 25 313 601 2SN ns 36.8 mm 50 mm zinc-plated steel
6 312 00 1SN s 13.2 mm 30 mm zinc-plated steel 25 313 659 2SN ns 39.0 mm 48 mm stainless steel
6 312 001 1SN ns 14.4 mm 31 mm zinc-plated steel 25 313 659 2ST s 39.0 mm 48 mm stainless steel
6 312 09 1SN s 13.1 mm 30 mm stainless steel 2SC
8 312 10 1SN 210 bar s 14.0 mm 31 mm zinc-plated steel
8 312 101 1SN 210 bar ns 16.0 mm 30 mm zinc-plated steel R+M Nr. hoses
8 312 19 1SN 210 bar s 14.0 mm 31 mm stainless steel 6 312 00 2SC s 13.2 mm 30 mm zinc-plated steel
8 312 191 1SN 210 bar ns 17.8 mm 31 mm stainless steel 6 312 09 2SC s 13.1 mm 30 mm stainless steel
8 312 10 1SN 315 bar s 14.0 mm 31 mm zinc-plated steel 8 312 10 2SC s 14.0 mm 31 mm zinc-plated steel
8 312 101 1SN 315 bar ns 16.0 mm 30 mm zinc-plated steel 8 312 19 2SC s 14.0 mm 31 mm stainless steel
8 312 19 1SN 315 bar s 14.0 mm 31 mm stainless steel 10 313 10 2SC s 16.6 mm 32 mm zinc-plated steel
8 312 191 1SN 315 bar ns 17.8 mm 31 mm stainless steel 10 313 19 2SC s 16.6 mm 32 mm stainless steel
10 313 10 1SN s 16.6 mm 32 mm zinc-plated steel 10 313 192 2SC ns 19.6 mm 32 mm stainless steel
10 313 101 1SN ns 18.3 mm 32 mm zinc-plated steel 12 313 39 2SC s 19.4 mm 34 mm stainless steel
10 313 19 1SN s 16.6 mm 32 mm stainless steel 20 313 69 2SC ns 30.3 mm 42 mm stainless steel
10 313 191 1SN ns 20.0 mm 34 mm stainless steel 25 313 659 2SC ns 39.0 mm 48 mm stainless steel
10 313 192 1SN ns 19.6 mm 32 mm stainless steel R+M
12 313 30 1SN s 20.5 mm 34 mm zinc-plated steel
12 313 39 1SN s 19.4 mm 34 mm stainless steel R+M Nr. hoses
12 313 319 1SN ns 22.7 mm 34 mm stainless steel 4 310 05 R+M 1 Bronze ns 10.3 mm 12 mm zinc-plated steel
16 313 40 1SN s 24.0 mm 37 mm zinc-plated steel 6 310 20 Flexy 300 ns 13.3 mm 25 mm zinc-plated steel
16 313 401 1SN ns 26.0 mm 37 mm zinc-plated steel 6 310 209 Flexy 300 ns 13.3 mm 25 mm stainless steel
16 313 49 1SN s 24.0 mm 37 mm stainless steel 6 312 09 Flexy 500 ns 13.1 mm 30 mm stainless steel
20 314 00 1SN s 27.1 mm 43 mm zinc-plated steel 10 313 10 Galvanator s 16.5 mm 32 mm zinc-plated steel
20 313 59 1SN s 27.8 mm 43 mm stainless steel 10 313 19 Galvanator s 16.6 mm 32 mm stainless steel
20 313 69 1SN ns 30.3 mm 42 mm stainless steel 10 313 15 2SC 500 bar s 18.3 mm 34 mm zinc-plated steel
25 313 601 1SN ns 36.8 mm 50 mm zinc-plated steel 10 313 29 2SN 500 bar s 18.0 mm 32 mm stainless steel
25 313 659 1SN ns 39.0 mm 48 mm stainless steel 10 313 19 2SC 500 bar s 16.6 mm 32 mm stainless steel
12 313 301 Foodjet ns 23.0 mm 34 mm zinc-plated steel
12 313 319 Foodjet ns 22.7 mm 34 mm stainless steel

s = to skive, ns = not to skive
Symbols nominal diameter diameter height material type packing unit
