P. 175

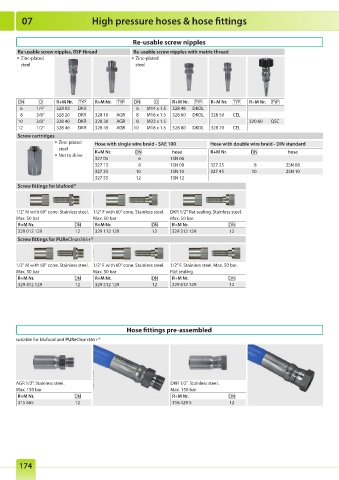

07 High pressure hoses & hose fittings
Re-usable screw nipples
Re-usable screw nipples, BSP thread Re-usable screw nipples with metric thread
» Zinc-plated » Zinc-plated
steel steel
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
6 1/4" 328 05 DKR 6 M14 x 1.5 328 48 DKOL
8 3/8" 328 20 DKR 328 10 AGR 8 M16 x 1.5 328 60 DKOL 328 50 CEL
10 3/8" 328 40 DKR 328 30 AGR 8 M22 x 1.5 320 60 QSC
12 1/2" 328 46 DKR 328 45 AGR 10 M18 x 1.5 328 80 DKOL 328 70 CEL
Screw cartridges
» Zinc-plated Hose with single wire braid - SAE 100 Hose with double wire braid - DIN standard
steel
R+M Nr. hose R+M Nr. hose
» Not to skive
327 05 6 1SN 06
327 15 8 1SN 08 327 25 8 2SN 08
327 35 10 1SN 10 327 45 10 2SN 10
327 55 12 1SN 12
Screw fittings for blufood®
1/2" M with 60° cone. Stainless steel. 1/2" F with 60° cone. Stainless steel. DKR 1/2" flat sealing. Stainless steel.
Max. 50 bar Max. 50 bar Max. 50 bar.
R+M Nr. R+M Nr. R+M Nr.
329 012 129 12 329 112 129 12 329 312 129 12
Screw fittings for PUReClean365+®
1/2" M with 60° cone. Stainless steel. 1/2" F with 60° cone. Stainless steel. 1/2" F. Stainless steel. Max. 50 bar.
Max. 50 bar Max. 50 bar Flat sealing
R+M Nr. R+M Nr. R+M Nr.
329 412 129 12 329 512 129 12 329 612 129 12
Hose fittings pre-assembled
suitable for blufood and PUReClean365+®
AGR 1/2". Stainless steel. DKR 1/2". Stainless steel.
Max. 150 bar Max. 150 bar
R+M Nr. R+M Nr.
315 665 12 316 429 5 12
174
