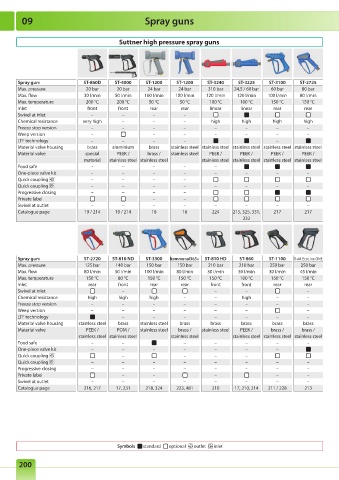

Page 201 - RM_2022

09 Spray guns

Suttner high pressure spray guns

Spray gun: ST-860D ST-4000 ST-1200 ST-1200 ST-3240 ST-3225 ST-3100 ST-2725
Max. pressure 20 bar 20 bar 24 bar 24 bar 310 bar 24,5 / 60 bar 60 bar 80 bar
Max. flow 30 l/min 50 l/min 100 l/min 100 l/min 120 l/min 120 l/min 100 l/min 80 l/min
Max. temperature 200 °C 200 °C 50 °C 50 °C 100 °C 100 °C 150 °C 150 °C
Inlet front front rear rear linear linear rear rear
Swivel at inlet – – – –
Chemical resistance very high – – – high high high high
Freeze stop version – – – – – – – –
Weep version – – – – – – –
LTF technology – – – – –
Material valve housing brass aluminium brass stainless steel stainless steel stainless steel stainless steel stainless steel
Material valve special PEEK / brass / stainless steel PEEK / PEEK / PEEK / PEEK /
material stainless steel stainless steel stainless steel stainless steel stainless steel stainless steel
Food safe – – – – –
One-piece valve kit – – – – – – – –
Quick coupling – – – –
Quick coupling – – – – – – – –
Progressive closing – – – –
Private label – –
Swivel at outlet – – – – – – – –
Catalogue page 19 / 214 19 / 214 16 16 224 215, 325, 331, 217 217
332

Spray gun: ST-2720 ST-810 ND ST-3300 kommunal365+ ST-810 HD ST-860 ST-1100 R+M EcoLine ONE
Max. pressure 125 bar 140 bar 150 bar 150 bar 210 bar 210 bar 250 bar 250 bar
Max. flow 80 l/min 30 l/min 100 l/min 80 l/min 30 l/min 30 l/min 30 l/min 45 l/min
Max. temperature 150 °C 80 °C 150 °C 150 °C 150 °C 100 °C 150 °C 150 °C
Inlet rear front rear rear front front rear rear
Swivel at inlet – – – –
Chemical resistance high high high – – high – –
Freeze stop version – – – – – – – –
Weep version – – – – – – –
LTF technology – – – – – – –
Material valve housing stainless steel brass stainless steel brass brass brass brass brass
Material valve PEEK / POM / stainless steel brass / stainless steel PEEK / brass / brass /
stainless steel stainless steel stainless steel stainless steel stainless steel stainless steel
Food safe – – – – – – –
One-piece valve kit – – – – – – –
Quick coupling – – – –
Quick coupling – – – – – – – –
Progressive closing – – – – – – – –
Private label – – – – –
Swivel at outlet – – – – – – – –
Catalogue page 216, 217 17, 231 218, 324 223, 481 210 17, 210, 214 211 / 228 213

Symbols standard optional outlet inlet
