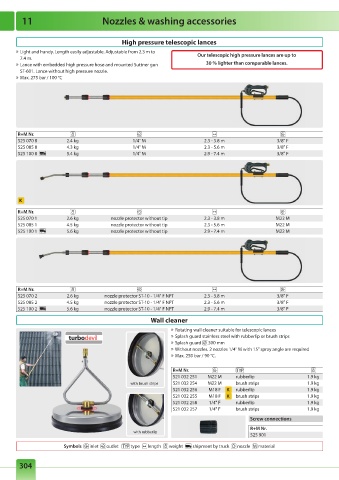

Page 305 - RM_2022

11 Nozzles & washing accessories

High pressure telescopic lances
» Light and handy. Length easily adjustable. Adjustable from 2.3 m to
Our telescopic high pressure lances are up to
7.4 m.
» Lance with embedded high pressure hose and mounted Suttner gun 30 % lighter than comparable lances.
ST-601. Lance without high pressure nozzle.
» Max. 275 bar / 100 °C

R+M Nr.
525 070 8 2.4 kg 1/4" M 2.3 - 3.8 m 3/8" F
525 085 8 4.3 kg 1/4" M 2.3 - 5.6 m 3/8" F
525 100 8 5.4 kg 1/4" M 2.9 - 7.4 m 3/8" F

K
R+M Nr.
525 070 1 2.6 kg nozzle protector without tip 2.3 - 3.8 m M22 M
525 085 1 4.5 kg nozzle protector without tip 2.3 - 5.6 m M22 M
525 100 1 5.6 kg nozzle protector without tip 2.9 - 7.4 m M22 M

R+M Nr.
525 070 2 2.6 kg nozzle protector ST-10 - 1/4" F NPT 2.3 - 3.8 m 3/8" F
525 085 2 4.5 kg nozzle protector ST-10 - 1/4" F NPT 2.3 - 5.6 m 3/8" F
525 100 2 5.6 kg nozzle protector ST-10 - 1/4" F NPT 2.9 - 7.4 m 3/8" F

Wall cleaner
» Rotating wall cleaner suitable for telescopic lances
turbodevil » Splash guard stainless steel with rubberlip or brush strips
» Splash guard 300 mm
» Without nozzles. 2 nozzles 1/4" M with 15° spray angle are required
» Max. 250 bar / 90 °C.

R+M Nr.
521 032 251 M22 M rubberlip 1.9 kg
with brush strips 521 032 254 M22 M brush strips 1.9 kg
521 032 256 M18 F K rubberlip 1.9 kg
521 032 255 M18 F K brush strips 1.9 kg
521 032 258 1/4" F rubberlip 1.9 kg
521 032 257 1/4" F brush strips 1.9 kg
Screw connections

R+M Nr.
with rubberlip
525 901
Symbols inlet outlet type length weight shipment by truck nozzle material

304
