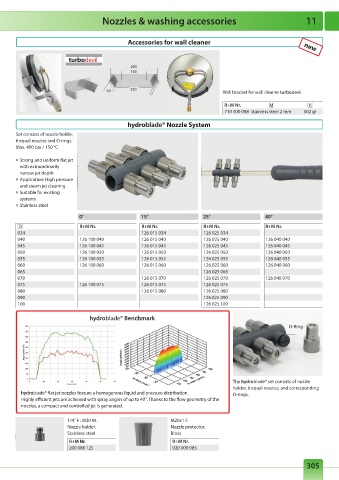

Page 306 - RM_2022

Nozzles & washing accessories 11

Accessories for wall cleaner
new
nuevo
Новинк
newа
nouveau
turbodevil
290
150
60 230 Wall bracket for wall cleaner turbodevil.
17
R+M Nr.
710 400 098 stainless steel 2 mm 502 gr
hydroblade® Nozzle System

Set consists of nozzle holder,
6 equal nozzles and O-rings.
Max. 400 bar / 150 °C
» Strong and uniform flat jet
with extraordinarily
narrow jet depth
» Application: High pressure
and steam jet cleaning
» Suitable for existing
systems
» Stainless steel

0° 15° 25° 40°
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
034 126 015 034 126 025 034
040 126 100 040 126 015 040 126 025 040 126 040 040
045 126 100 045 126 015 045 126 025 045 126 040 045
050 126 100 050 126 015 050 126 025 050 126 040 050
055 126 100 055 126 015 055 126 025 055 126 040 055
060 126 100 060 126 015 060 126 025 060 126 040 060
065 126 025 065
070 126 015 070 126 025 070 126 040 070
075 126 100 075 126 015 075 126 025 075
080 126 015 080 126 025 080
090 126 025 090
100 126 025 100

hydroblade® Benchmark
O-Ring

The hydroblade® set consists of nozzle
holder, 6 equal nozzles, and corresponding
hydroblade® flat jet nozzles feature a homogenous liquid and pressure distribution. O-rings.
Highly efficient jets are achieved with spray angles of up to 40°. Thanks to the flow geometry of the
nozzles, a compact and controlled jet is generated.

1/4" F : M20 M. M20x1 F.
Nozzle holder. Nozzle protector.
Stainless steel Brass
R+M Nr. R+M Nr.
200 088 125 020 000 085

305
