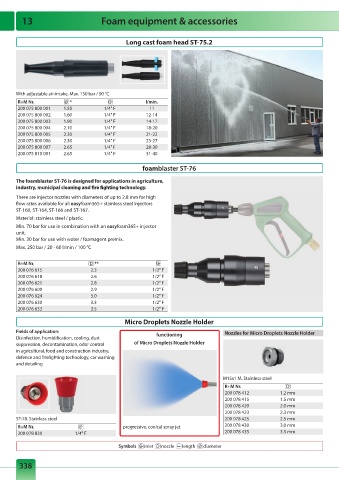

13 Foam equipment & accessories

Long cast foam head ST-75.2

With adjustable air-intake. Max. 150 bar / 90 °C
R+M Nr. * l/min.
200 075 800 001 1.55 1/4" F 11
200 075 800 002 1.60 1/4" F 12-14
200 075 800 003 1.90 1/4" F 14-17
200 075 800 004 2.10 1/4" F 18-20
200 075 800 005 2.30 1/4" F 21-22
200 075 800 006 2.30 1/4" F 23-27
200 075 800 007 2.65 1/4" F 28-30
200 075 810 001 2.65 1/4" F 31-40

foamblaster ST-76

The foamblaster ST-76 is designed for applications in agriculture,
industry, municipal cleaning and fire fighting technology.
There are injector nozzles with diameters of up to 2.8 mm for high
flow rates available for all easyfoam365+ stainless steel injectors
ST-160, ST-164, ST-166 and ST-167.
Material: stainless steel / plastic.
Min. 70 bar for use in combination with an easyfoam365+ injector
unit.
Min. 30 bar for use with water / foamagent premix.
Max. 250 bar / 20 - 60 l/min / 100 °C

R+M Nr. **
200 076 615 2.3 1/2" F
200 076 618 2.6 1/2" F
200 076 621 2.8 1/2" F
200 076 600 2.9 1/2" F
200 076 624 3.0 1/2" F
200 076 630 3.3 1/2" F
200 076 633 3.5 1/2" F

Micro Droplets Nozzle Holder
Fields of application: Nozzles for Micro Droplets Nozzle Holder
functioning
Disinfection, humidification, cooling, dust
of Micro Droplets Nozzle Holder
suppression, decontamination, odor control
in agricultural, food and construction industry,
defence and firefighting technology, car washing
and detailing

M15x1 M. Stainless steel
R+M Nr.
200 078 412 1.2 mm
200 078 415 1.5 mm
200 078 420 2.0 mm
200 078 423 2.3 mm
ST-78. Stainless steel 200 078 425 2.5 mm
R+M Nr. progressive, conical spray jet 200 078 430 3.0 mm
200 078 830 1/4" F 200 078 435 3.5 mm

Symbols inlet nozzle length diameter
