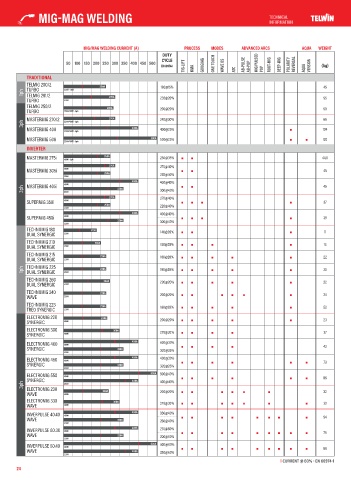

MIG-MAG WELDING TECHNICAL
INFORMATION

MIG/MAG WELDING CURRENT (A) PROCESS MODES ADVANCED ARCS AQUA WEIGHT
DUTY
CYCLE
50 100 150 200 250 300 350 400 450 500 ONE TOUCH MIG PULSED
EN60974-1 TIG-LIFT MMA GOUGING WAVE OS ATC AB-PULSE AB-POP POP ROOT-MIG DEEP-MIG POLARITY REVERSAL AQUA VERSION (kg)
TRADITIONAL
TELMIG 200/2 220A 180@15% 45
1ph TURBO 230V - 20A
TELMIG 281/2
TURBO 230V 270A 235@20% 55
TELMIG 250/2 260A 200@20% 50
TURBO 230V/400V - 3ph
MASTERMIG 270/2 270A 240@30% 66
3ph 230V/400V - 3ph
MASTERMIG 400 400A 400@25% 104
230V/400V - 3ph
MASTERMIG 500 500A 500@25% 120
230V/400V - 3ph
INVERTER
MASTERMIG 275i 400V - 3ph 250A 250@35% 44,5
270A 270@40%
MASTERMIG 305i 400V 45
250A 220@40%
230V
400A 400@40%
400V 45
MASTERMIG 405i
3ph 230V 320A 300@40%
270A 270@40%
SUPERMIG 350i 400V 37
250A 220@40%
230V
400A 400@40%
SUPERMIG 450i 400V 39
320A 300@40%
230V
TECHNOMIG 180 170A 140@20% 11
DUAL SYNERGIC 230V
TECHNOMIG 210 200A 180@20% 13
DUAL SYNERGIC 230V
TECHNOMIG 215 220A 180@20% 22
DUAL SYNERGIC 230V
1ph TECHNOMIG 225 230V 220A 180@20% 30
DUAL SYNERGIC
TECHNOMIG 260 250A 220@20% 22
DUAL SYNERGIC 230V
TECHNOMIG 240 220A 200@20% 24
WAVE 230V
TECHNOMIG 223 220A 180@20% 52
TREO SYNERGIC 230V
ELECTROMIG 220 230A 200@20% 23
SYNERGIC 400V
ELECTROMIG 300 300A 270@30% 37
SYNERGIC 400V
400A 400@30%
ELECTROMIG 400 400V 42
SYNERGIC 320A 320@25%
230V
ELECTROMIG 450 400V 400A 400@30% 73
SYNERGIC 320A 320@25%
230V
500A 500@40%
ELECTROMIG 550 400V 86
SYNERGIC 400A 400@40%
3ph 230V
ELECTROMIG 230 240A 200@20% 32
WAVE 400V
ELECTROMIG 330 300A 270@30% 39
WAVE 400V
INVERPULSE 40.40 400V 400A 350@40% 54
WAVE 320A 260@40%
230V
400A 270@60%
INVERPULSE 60.30 400V 75
WAVE 320A 200@60%
230V
500A 400@60%
INVERPULSE 60.40 400V 88
WAVE 400A 330@60%
230V
CURRENT @ 60% - EN 60974-1
