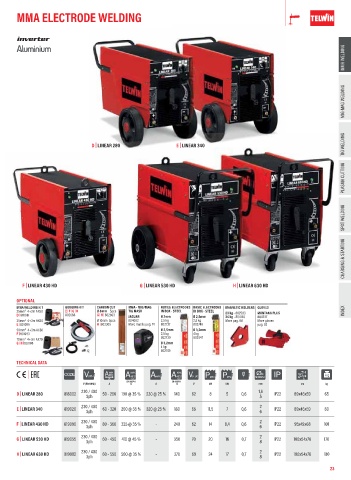

Page 23 - Telwin_2023

MMA ELECTRODE WELDING

MMA WELDING

MIG-MAG WELDING

TIG WELDING TIG WELDING
D | LINEAR 280 E | LINEAR 340

PLASMA CUTTING PLASMA CUTTING

SPOT WELDING SPOT WELDING

CHARGING & STARTING CHARGING & STARTING

F | LINEAR 430 HD G | LINEAR 530 HD H | LINEAR 630 HD

OPTIONAL
MMA WELDING KIT GOUGING KIT CARBON CUT MMA - MIG/MAG RUTILE ELECTRODES BASIC ELECTRODES MAGNETIC HOLDERS GLOVES
2
25mm 4+3m AX50 E | F | G | H Ø 8mm 5pcs TIG MASK IN BOX - STEEL IN BOX - STEEL 23 kg - 802583 MONTANA PLUS INDEX
D | 801081 802666 G | H | 802803
JAGUAR Ø 2mm Ø 2,5mm 34 kg - 804130 804337
2
35mm 4+3m AX50 Ø 10mm 5pcs 804082 2,5 kg 2,5 kg More pag. 88 More gloves
E | 801095 H | 802305 More masks pag. 74 802737 802748 pag. 83
2
50mm 4+3m AX50 Ø 2,5mm Ø 3,2mm
F | 801093 2,5 kg 4 kg
802739 802947
70mm 4+3m AX70
2
G | H | 801106 Ø 3,2mm
4 kg
802749
TECHNICAL DATA
CODE V3PH A MIN MAX 60% ØDC IP W H
MAX
DC A40°C AMAX A40°C VODC PMAX P60% MIN/MAX L
DC
DC
EN 60974-1 EN 60974-1
V (50-60Hz) A A A A V kW kW mm cm kg
230 / 400 1,6
D | LINEAR 280 818002 50 - 260 190 @ 35 % 230 @ 25 % 140 62 8 5 0,6 IP22 89x46x59 65
3ph 5
230 / 400 2
E | LINEAR 340 819020 60 - 320 260 @ 35 % 320 @ 25 % 180 65 11,5 7 0,6 IP22 89x46x59 80
3ph 6
230 / 400 2
F | LINEAR 430 HD 819090 80 - 360 325 @ 35 % - 240 62 14 8,4 0,6 IP22 95x49x68 101
3ph 6
230 / 400 2
G | LINEAR 530 HD 819055 60 - 450 410 @ 45 % - 350 70 20 16 0,7 IP22 100x54x76 170
3ph 8
230 / 400 2
H | LINEAR 630 HD 819082 60 - 550 500 @ 35 % - 370 69 24 17 0,7 IP22 100x54x76 180
3ph 8
23
