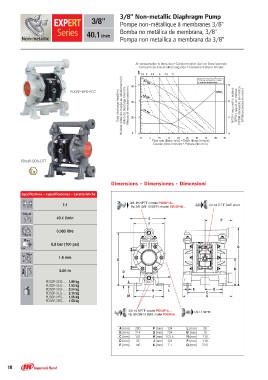

Page 10 - Air-powered pumps 180

3/8" 3/8" Non-metallic Diaphragm Pump
40.1 l/min Pompe non-métallique à membranes 3/8"
Bomba no metálica de membrana, 3/8"
Pompa non metallica a membrana da 3/8"

Air consumption in liters / sec • Consommation d’air en litres / seconde
Consumo de aire en litros / segundo • Consumo d’aria in litri / sec

PD03P-BPS-PCC Total discharge head (m)
Hauteur totale de charge au refoulement (m)

Altura de descarga total (m)
Altezza di mandata totale (m)

NPSH required in meters
NPSH requis en mètres
NPSH necesario en metros
NPSH richiesta in metri)

Flow rate (liters / min.) • Débit (litres / minute)
Caudal (litros / minuto) • Portata (litri / min.)

PD03P-BDS-DTT

Dimensions • Dimensiones • Dimensioni

Specifications – Especificaciones – Caratteristiche 3/8-18 NPTF: model PD03P-A… 1/4-18 P.T.F. SAE short
Rp 3/8 (3/8-19 BSP): model PD03P-B… P
1:1
E
40.1 l/min F

0.083 litre B G
D N
6.9 bar (100 psi)
HL KQ
bar C

1.6 mm MJ A

2.60 m

PD03P-XDS-… 1.89 kg
PD03P-XES-… 1.93 kg
PD03P-XKS-… 2.04 kg
PD03P-XLS-… 2.10 kg
PD03P-XPS-… 1.56 kg
PD03P-XRS-… 1.59 kg

3/8-18 NPTF: model PD03P-A… 1/2-14 NPTF
Rp 3/8 (3/8-19 BSP): model PD03P-B…

A (mm) 200 F (mm) 124 L (mm) 28
B (mm) 214 G (mm) 234 M (mm) 10
C (mm) 141 H (mm) 101.5 N (mm) 110
D (mm) 32 J (mm) 121 P (mm) 110
E (mm) 145 K (mm) 7.1 Q (mm) 70.5

10
