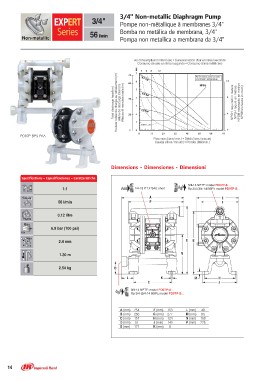

3/4" 3/4" Non-metallic Diaphragm Pump
56 l/min Pompe non-métallique à membranes 3/4"
Bomba no metálica de membrana, 3/4"
Pompa non metallica a membrana da 3/4"

Air consumption in liters / sec • Consommation d’air en litres / seconde
Consumo de aire en litros / segundo • Consumo d’aria in litri / sec

Total discharge head (m) r
Hauteur totale de charge au refoulement (m)

Altura de descarga total (m)
Altezza di mandata totale (m)

NPSH required in meters
NPSH requis en mètres
NPSH necesario en metros
NPSH richiesta in metri)

PD07P-BPS-PAA Flow rate (liters / min.) • Débit (litres / minute)
Caudal (litros / minuto) • Portata (litri / min.)

Dimensions • Dimensiones • Dimensioni

Specifications – Especificaciones – Caratteristiche 1/4-18 P.T.F SAE short 3/4-14 NPTF: model PD07P-A…
1:1 Rp 3/4 (3/4-14 BSP): model PD07P-B…
A
56 l/min P E
F
0.12 litre
GB
6.9 bar (100 psi) N

bar D

2.4 mm

1.30 m

2.54 kg

LK M H
C J

3/4-14 NPTF: model PD07P-A…
Rp 3/4 (3/4-14 BSP): model PD07P-B…

A (mm) 254 F (mm) 153 L (mm) 49
B (mm) 256 G (mm) 277 M (mm) 9.5
C (mm) 157 H (mm) 124 N (mm) 160
D (mm) 51 J (mm) 140 P (mm) 225
E (mm) 171 K (mm)
