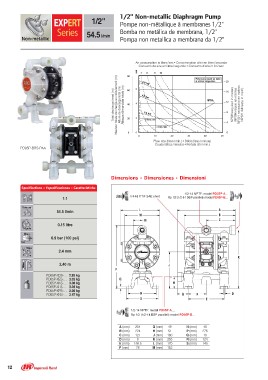

Page 12 - Air-powered pumps 180

1/2" 1/2" Non-metallic Diaphragm Pump
54.5 l/min Pompe non-métallique à membranes 1/2"
Bomba no metálica de membrana, 1/2"
Pompa non metallica a membrana da 1/2"

Air consumption in liters / sec • Consommation d’air en litres / seconde
Consumo de aire en litros / segundo • Consumo d’aria in litri / sec

4 6 8 10
80
Total discharge head (m)
Hauteur totale de charge au refoulement (m) 20

Altura de descarga total (m)60 6 16
Altezza di mandata totale (m)
40 4 12
NPSH required in meters20 2 8
NPSH requis en mètres 4
NPSH necesario en metros
NPSH richiesta in metri)
00 0
0 10 20 30 40 50

Flow rate (liters / min.) • Débit (litres / minute)
Caudal (litros / minuto) • Portata (litri / min.)

PD05P-BRS-PAA

Dimensions • Dimensiones • Dimensioni

Specifications – Especificaciones – Caratteristiche 1/4-18 P.T.F SAE short 1/2-14 NPTF: model PD05P-A…
Rp 1/2 (1/2-14 BSP parallel): model PD05P-B…
1:1
L A
54.5 l/min M B
C
0.15 litre N

6.9 bar (100 psi) P J K
Q D
bar H
R GF
2.4 mm SE

2.40 m 1/2-14 NPTF: model PD05P-A…
Rp 1/2 (1/2-14 BSP parallel): model PD05P-B…
PD05P-XDS-… 2.85 kg
PD05P-XES-… 3.03 kg
PD05P-XKS-… 3.08 kg
PD05P-XLS-… 3.28 kg
PD05P-XPS-… 2.36 kg
PD05P-XRS-… 2.47 kg

A (mm) 254 G (mm) 49 N (mm) 40
B (mm) 224 H (mm) 51 P (mm) 276
C (mm) 127 J (mm) 160 Q (mm) 10
D (mm) K (mm) 255 R (mm) 124
E (mm) 8 L (mm) 170 S (mm) 140
F (mm) 156.5 M (mm) 152
