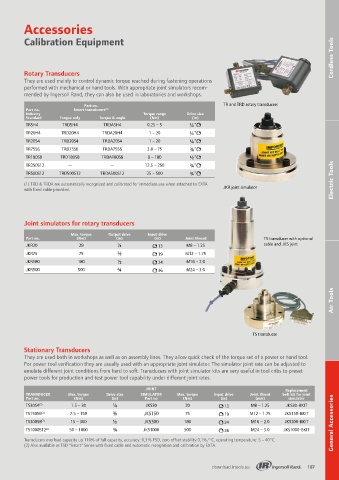

Accessories

Calibration Equipment
Cordless Tools

Rotary Transducers
They are used mainly to control dynamic torque reached during fastening operations
performed with mechanical or hand tools. With appropriate joint simulators recom-
mended by Ingersoll Rand, they can also be used in laboratories and workshops.

Part no. TR and TRD rotary transducers
Part no. Smart transducers (1)
Industry Torque range Drive size
Standard Torque only Torque & angle (Nm) (in)
TR5H4 TRD5H4 TRDA5H4 0.25 – 5 1/4"
TR20H4 TRD20H4 TRDA20H4 1 – 20 1/4"
TR20S4 TRD20S4 TRDA20S4 1 – 20 1/4"
TR75S6 TRD75S6 TRDA75S6 3.8 – 75 3/8"
TR180S8 TRD180S8 TRDA180S8 9 – 180 1/2"
TR250S12 — — 12.5 – 250 3/4"
TR500S12 TRD500S12 TRDA500S12 25 – 500 3/4"

(1) TRD & TRDA are automatically recognized and calibrated for immediate use when attached to EXTA Electric Tools
with fixed cable provided. JKR joint simulator

Joint simulators for rotary transducers

Max. torque Output drive Input drive
Part no. (Nm) (in) (in) Joint thread TS transducer with optional
JKR20 28 1/4 13 M8 – 1.25 cable and JKS joint
JKR75 75 3/8 19 M12 – 1.75
JKR180 180 1/2 24 M16 – 2.0
JKR500 500 3/4 36 M24 – 3.0

Air Tools

TS transducer

Stationary Transducers
They are used both in workshops as well as on assembly lines. They allow quick check of the torque set of a power or hand tool.
For power tool verification they are usually used with an appropriate joint simulator. The simulator joint rate can be adjusted to
emulate different joint conditions from hard to soft. Transducers with joint simulator kits are very useful in tool cribs to preset
power tools for production and test power tool capability under different joint rates.

JOINT Replacement
TRANSDUCER Max. torque Drive size SIMULATOR Max. torque Input drive Joint threat bolt kit for joint
Part no. (Nm) (in) Part no (Nm) (in) (mm) simulator
TS30S4 (2) 1.5 – 30 1/4 JKS30 20 13 M8 – 1.25 JKS30-BKIT
TS150S6 (2) 7.5 – 150 3/8 JKS150 75 19 M12 – 1.75 JKS150-BKIT
TS300S8 (2) 15 – 300 1/2 JKS300 180 24 M16 – 2.0 JKS300-BKIT General Accessories
TS1000S12 (2) 50 – 1000 3/4 JKS1000 500 36 M24 – 3.0 JKS1000-BKIT
Transducers overload capacity up 110% of full capacity, accuracy: 0,3 % FSD, zero offset stability 0,1%/°C, operating temperature: 5 – 40°C.
(2) Also available as TSD "Smart" Series with fixed cable and automatic recognition and calibration by EXTA.

download.irtools.eu 107
