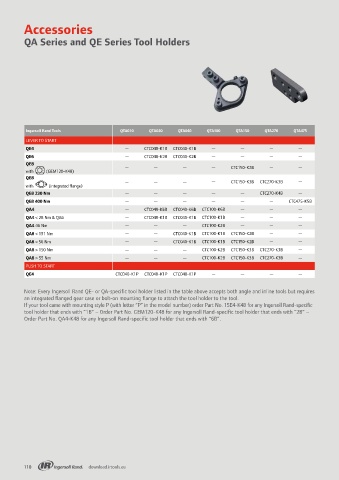

Accessories

QA Series and QE Series Tool Holders

PUSH
Ingersoll Rand Tools QTA010 QTA020 QTA040 QTA100 QTA150 QTA270 QTA475
LEVER
LEVER TO START
LEVER
QE4 PUSH — CTC040-K1B CTC040-K1B — — — —
QE6 LEVER — CTC040-K2B CTC040-K2B — — — —
QE8
LEVER — — — — CTC150-K2B — —
with (GEM120-K48)
QE8
— — — — CTC150-K3B CTC270-K3B —
with (integrated flange)
QE8 230 Nm — — — — — CTC270-K4B —
QE8 400 Nm — — — — — — CTC475-K5B
QA4 — CTC040-K6B CTC040-K6B CTC100-K6B — — —
QA4 < 28 Nm & QA6 — CTC040-K1B CTC040-K1B CTC100-K1B — — —
QA4 46 Nm — — — CTC100-K2B — — —
QA8 < 151 Nm — — CTC040-K1B CTC100-K1B CTC150-K2B — —
QA8 < 56 Nm — — CTC040-K1B CTC100-K1B CTC150-K2B — —
QA8 > 150 Nm — — — CTC100-K2B CTC150-K3B CTC270-K3B —
QA8 > 55 Nm — — — CTC100-K2B CTC150-K3B CTC270-K3B —
PUSH TO START
QE4 CTC040-K1P CTC040-K1P CTC040-K1P — — — —

Note: Every Ingersoll Rand QE- or QA-specific tool holder listed in the table above accepts both angle and inline tools but requires
an integrated flanged gear case or bolt-on mounting flange to attach the tool holder to the tool.
If your tool came with mounting style P (with letter “P” in the model number) order Part No. 15E4-K48 for any Ingersoll Rand-specific
tool holder that ends with “1B” – Order Part No. GEM120-K48 for any Ingersoll Rand-specific tool holder that ends with “2B” –
Order Part No. QA4-K48 for any Ingersoll Rand-specific tool holder that ends with “6B”.
