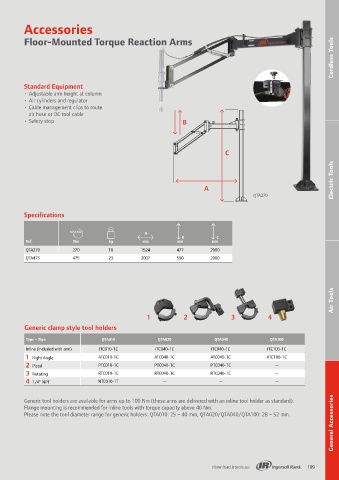

Page 109 - Assembly_Solutions

Accessories

Floor-Mounted Torque Reaction Arms
Cordless Tools

Standard Equipment
• Adjustable arm height at column
• Air cylinders and regulator
• Cable management clips to route
air hose or DC tool cable
• Safety stop B

C
Electric Tools

A
QTA270

Specifications

A
B C
Ref. Nm kg mm mm mm
QTA270 270 10 1524 477 2000
QTA475 475 23 2007 590 2000

Air Tools

1 2 3 4
Generic clamp style tool holders

Type – Tipo QTA010 QTA020 QTA040 QTA100
Inline (included with arm) ITC010-1C ITC040-1C ITC040-1C ITC100-1C
1 Right Angle ATC010-1C ATC040-1C ATC040-1C ATC100-1C
2 Pistol PTC010-1C PTC040-1C PTC040-1C —
3 Rotating RTC010-1C RTC040-1C RTC040-1C —
4 1/4" NPT NTC010-1T — — —

General Accessories
Generic tool holders are available for arms up to 100 Nm (these arms are delivered with an inline tool holder as standard).
Flange mounting is recommended for inline tools with torque capacity above 40 Nm.
Please note the tool diameter range for generic holders: QTA010: 25 – 40 mm, QTA020/QTA040/QTA100: 28 – 52 mm.

download.irtools.eu 109
