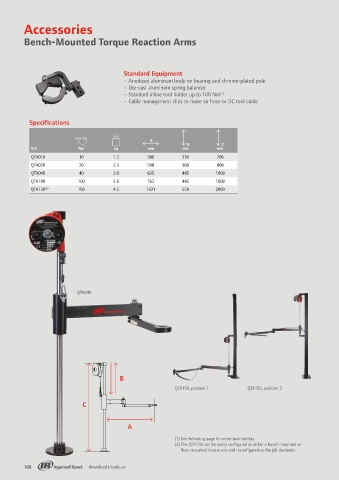

Accessories

Bench-Mounted Torque Reaction Arms

Standard Equipment
• Anodized aluminum body on bearing and chrome-plated pole
• Die-cast aluminum spring balancer
• Standard inline tool holder up to 100 Nm (1)
• Cable management clips to route air hose or DC tool cable

Specifications

A
B C
Ref. Nm kg mm mm mm
QTA010 10 1.2 380 330 706
QTA020 20 2.3 508 368 808
QTA040 40 3.0 635 445 1008
QTA100 100 3.6 762 445 1008
QTA150 (2) 150 4.5 1321 559 2000

QTA040

B
QTA150, position 1 QTA150, position 2

C

A

(1) See following page for other tool holders.
(2) The QTA150 can be easily configured as either a bench-mounted or
floor-mounted torque arm and reconfigured as the job demands.
