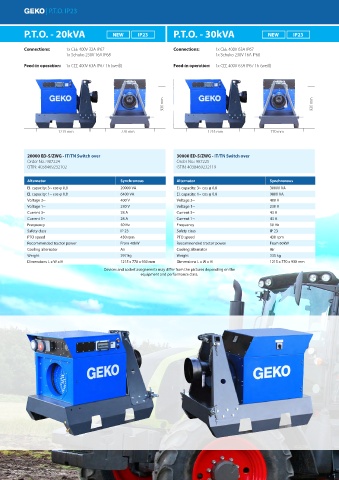

Page 54 - Geko 01_2020

| P.T.O. IP23

P.T.O. - 20kVA NEW IP23 P.T.O. - 30kVA NEW IP23

Connections: 1x CEE 400V 32A IP67 Connections: 1x CEE 400V 63A IP67
1x Schuko 230V 16A IP68 1x Schuko 230V 16A IP68

Feed-in operation: 1x CEE 400V 63A IP67 1h (weiß) Feed-in operation: 1x CEE 400V 63A IP67 1h (weiß)

930 mm 930 mm

1215 mm 770 mm 1215 mm 770 mm

20000 ED-S/ZWG - IT/TN Switch over 30000 ED-S/ZWG - IT/TN Switch over
Order No.: 987224 Order No.: 987225
GTIN: 4038469232102 GTIN: 4038469232119

Alternator Synchronous Alternator Synchronous
El. capacity: 3~ cos φ 0,8 20000 VA El. capacity: 3~ cos φ 0,8 30000 VA
El. capacity: 1~ cos φ 0,8 6400 VA El. capacity: 1~ cos φ 0,8 9800 VA
Voltage 3~ 400 V Voltage 3~ 400 V
Voltage 1~ 230 V Voltage 1~ 230 V
Current 3~ 28 A Current 3~ 43 A
Current 1~ 28 A Current 1~ 43 A
Frequency 50 Hz Frequency 50 Hz
Safety class IP 23 Safety class IP 23
PTO speed 430 rpm PTO speed 430 rpm
Recommended tractor power From 40kW Recommended tractor power From 60kW
Cooling alternator Air Cooling alternator Air
Weight 297 kg Weight 335 kg
Dimensions L x W x H 1215 x 770 x 930 mm Dimensions L x W x H 1215 x 770 x 930 mm
Devices and socket assignments may differ from the pictures depending on the
equipment and performance class.
