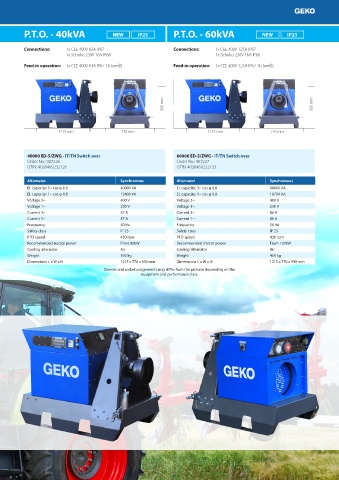

Page 55 - Geko 01_2020

P.T.O. - 40kVA NEW IP23 P.T.O. - 60kVA NEW IP23

Connections: 1x CEE 400V 63A IP67 Connections: 1x CEE 400V 125A IP67
1x Schuko 230V 16A IP68 1x Schuko 230V 16A IP68

Feed-in operation: 1x CEE 400V 63A IP67 1h (weiß) Feed-in operation: 1x CEE 400V 125A IP67 1h (weiß)

930 mm 930 mm

1215 mm 770 mm 1215 mm 770 mm

40000 ED-S/ZWG - IT/TN Switch over 60000 ED-S/ZWG - IT/TN Switch over
Order No.: 987226 Order No.: 987227
GTIN: 4038469232126 GTIN: 4038469232133

Alternator Synchronous Alternator Synchronous
El. capacity: 3~ cos φ 0,8 40000 VA El. capacity: 3~ cos φ 0,8 60000 VA
El. capacity: 1~ cos φ 0,8 13400 VA El. capacity: 1~ cos φ 0,8 19700 VA
Voltage 3~ 400 V Voltage 3~ 400 V
Voltage 1~ 230 V Voltage 1~ 230 V
Current 3~ 57 A Current 3~ 86 A
Current 1~ 57 A Current 1~ 86 A
Frequency 50 Hz Frequency 50 Hz
Safety class IP 23 Safety class IP 23
PTO speed 430 rpm PTO speed 430 rpm
Recommended tractor power From 80kW Recommended tractor power From 120kW
Cooling alternator Air Cooling alternator Air
Weight 392 kg Weight 450 kg
Dimensions L x W x H 1215 x 770 x 930 mm Dimensions L x W x H 1215 x 770 x 930 mm
Devices and socket assignments may differ from the pictures depending on the
equipment and performance class.
