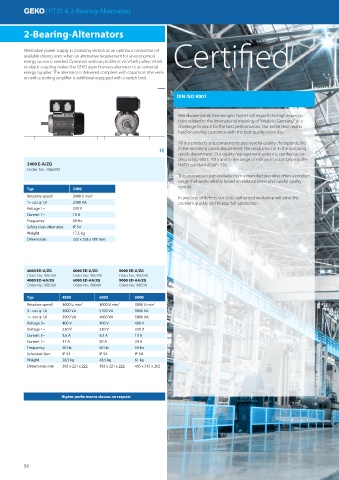

Page 56 - Geko 01_2020

| P.T.O. & 2-Bearing Alternators

2-Bearing-Alternators
or elastic coupling makes the GEKO asynchronous alternator to an universal Certified Management System
Alternative power supply in 2-bearing version as an optimum connection of
available driving units when an alternative requirement for an economical
energy source is needed. Operation without problems via V-belt pulley, V-belt
energy supplier. The alternator is delivered complete with capacitors (the versi-
on with a starting amplifier is additional equipped with a switch box).
in accordance with the standard

DIN ISO 9001 DIN EN ISO 9001:2015

Metallwarenfabrik Gemmingen GmbH still regards the high expecta-
tions related to the international meaning of “Made in Germany” as a
challenge to reach for the best performances. Our entire team works

hard on serving customers with the best quality every day.
All our products and components pass several quality checkpoints, like It is hereby confirmed that the organization
in the incoming goods department, the production or in the outgoing
goods department. Our quality management system is certified accor-
ding to ISO 9001: 2015 and in the range of military in accordance to the
2400 E-A/ZG NATO standard AQAP- 130.
Order-No.: 986090
This assurance is just available from a manufacturer who offers a product
range that works reliably based on elaborateness and careful quality
control.
Typ 2400
Rotation-speed 3000 U min -1 In any case of defects our close authorised workshop will solve the
1~ cos φ 1,0 2300 VA problem quickly and to your full satisfaction.
Voltage 1~ 230 V
Current 1~ 10 A
Frequency 50 Hz
Safety class alternator IP 54
Weight 17,5 kg
Dimensions 332 x 258 x 180 mm Metallwarenfabrik Gemmingen GmbH
Industriestraße 1
75050 Gemmingen

4000 ED-A/ZG 6000 ED-A/ZG 9000 ED-A/ZG
Order-No.: 986369 Order-No.: 986490 Order-No.: 986590 is applying a management system for the following scope of application:
4000 ED-AA/ZG 6000 ED-AA/ZG 9000 ED-AA/ZG
Order-No.: 986368 Order-No.: 986491 Order-No.: 986591
Design, manufacturing, and sales of stamped and die-cast parts
Typ 4000 6000 9000
Rotation-speed 3000 U min -1 3000 U min -1 3000 U min -1 Design, manufacturing, and sales of power generator systems, and
3~ cos φ 1,0 3900 VA 5700 VA 9000 VA distribution of handheld spotlights, cable drums and tripods
1~ cos φ 1,0 3900 VA 4600 VA 5900 VA
Voltage 3~ 400 V 400 V 400 V
Voltage 1~ 230 V 230 V 230 V
Current 3~ 5,6 A 8,3 A 13 A
Current 1~ 17 A 20 A 24 A

Frequency 50 Hz 50 Hz 50 Hz
Schutzart Gen. IP 54 IP 54 IP 54
Weight 38,5 kg 48,5 kg 61 kg
Dimensions mm 393 x 221 x 222 393 x 221 x 222 465 x 315 x 262
The certificate consists of 1 page.
Certificate registration no. 150114Q
Date of initial certification: 06.04.2011
Higher performance classes on request This certificate is valid until: 09.04.2023
