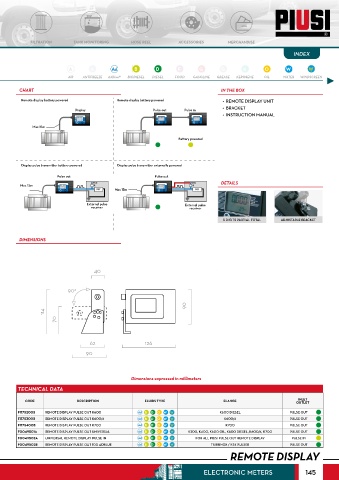

Page 145 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

Remote display battery powered Remote display battery powered • REMOTE DISPLAY UNIT
• BRACKET
Display Pulse out Pulse in
• INSTRUCTION MANUAL
Max 15m

Battery powered

Display pulse transmitter battery powered Display pulse transmitter externally powered
Pulse out Pulse out
DETAILS
Max 15m
Max 15m
External pulse External pulse
receiver receiver

5 DIGITS PARTIAL TOTAL ADJUSTABLE BRACKET

DIMENSIONS

MATERIALS
40

90°

90
114
70

62 126

90

Dimensions expressed in millimeters
TECHNICAL DATA

INLET
CODE DESCRIPTION FLUIDS TYPE FLANGE OUTLET
F1175200B REMOTE DISPLAY PULSE OUT K600 Ad B D O W W K600 DIESEL PULSE OUT
S
F1175300B REMOTE DISPLAY PULSE OUT K600/4 Ad B D O W W S K600/4 PULSE OUT
F1175400B REMOTE DISPLAY PULSE OUT K700 Ad B D O W W S K700 PULSE OUT
F0049501A REMOTE DISPLAY PULSE OUT UNIVERSAL Ad B D O W W S K200, K400, K600 OIL, K600 DIESEL, K600/4, K700 PULSE OUT
F0049502A UNIVERSAL REMOTE DISPLAY PULSE IN Ad B D O W W FOR ALL PIUSI PULSE OUT REMOTE DISPLAY PULSE IN
S
F0049503B REMOTE DISPLAY PULSE OUT 100 ADBLUE Ad B D O W W S TURBINOX / K24 PULSER PULSE OUT
REMOTE DISPLAY

ELECTRONIC METERS 145
