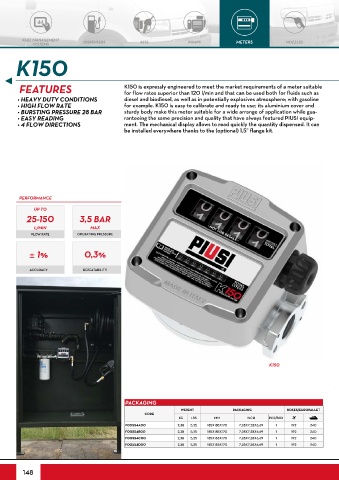

K150

FEATURES K150 is expressly engineered to meet the market requirements of a meter suitable
for flow rates superior than 120 l/min and that can be used both for fluids such as
• HEAVY DUTY CONDITIONS diesel and biodiesel, as well as in potentially explosives atmosphere; with gasoline
• HIGH FLOW RATE for example. K150 is easy to calibrate and ready to use; its aluminium cover and
• BURSTING PRESSURE 28 BAR sturdy body make this meter suitable for a wide arrange of application while gua-
• EASY READING ranteeing the same precision and quality that have always featured PIUSI equip-
• 4 FLOW DIRECTIONS ment. The mechanical display allows to read quickly the quantity dispensed. It can
be installed everywhere thanks to the (optional) 1,5” flange kit.

PERFORMANCE
UP TO
25-150 3,5 BAR
L/MIN MAX
FLOW RATE OPERATING PRESSURE

± 1% 0,3%

ACCURACY REPEATABILITY

K150

PACKAGING
WEIGHT PACKAGING BOXES/EUROPALLET
CODE
KG LBS MM INCH PCS/BOX
F00554A00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240
F00554B00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240
F00554C00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240
F00554D00 2,38 5,25 185X185X170 7,28X7,28X6,69 1 192 240
