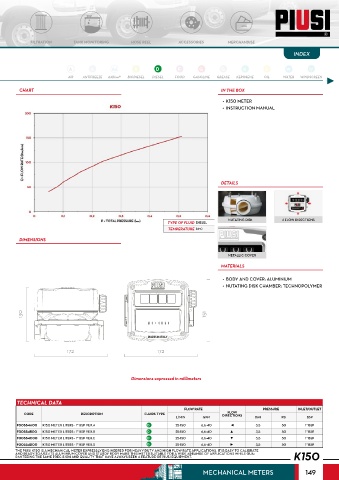

Page 149 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• K150 METER
• INSTRUCTION MANUAL

DETAILS

NUTATING DISK 4 FLOW DIRECTIONS
TYPE OF FLUID DIESEL
TEMPERATURE 16°C
DIMENSIONS

METALLIC COVER
MATERIALS
• BODY AND COVER: ALUMINIUM
• NUTATING DISK CHAMBER: TECHNOPOLYMER

130 151

172 172

Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE PRESSURE INLET/OUTLET
CODE DESCRIPTION FLUIDS TYPE FLOW
L/MIN GPM DIRECTIONS BAR PSI BSP
F00554A00 K150 METER LITERS - 1" BSP VER.A D 25-150 6,6-40 ◄ 3,5 50 1" BSP
F00554B00 K150 METER LITERS - 1" BSP VER.B D 25-150 6,6-40 ▲ 3,5 50 1" BSP
F00554C00 K150 METER LITERS - 1" BSP VER.C D 25-150 6,6-40 ▼ 3,5 50 1" BSP
F00554D00 K150 METER LITERS - 1" BSP VER.D D 25-150 6,6-40 ► 3,5 50 1" BSP
THE PIUSI K150 IS A MECHANICAL METER EXPRESSLY ENGINEERED FOR HEAVY DUTY AND HIGH FLOW RATE APPLICATIONS. IT IS EASY TO CALIBRATE
AND READY-TO-USE; ITS ALUMINIUM COVER AND STURDY BODY MAKE THIS METER SUITABLE FOR A WIDE ARRANGE OF APPLICATIONS WHILE GUA- K150
RANTEEING THE SAME PRECISION AND QUALITY THAT HAVE ALWAYS BEEN A FEATURE OF PIUSI EQUIPMENT.

MECHANICAL METERS 149
