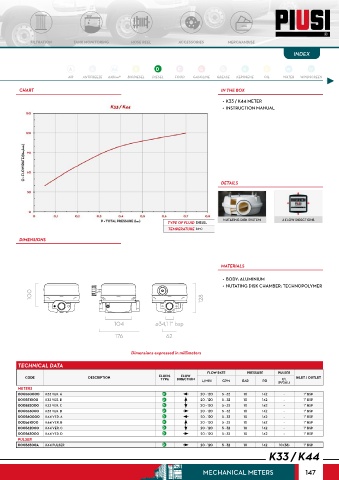

Page 147 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• K33 / K44 METER
• INSTRUCTION MANUAL

DETAILS

NUTATING DISK SYSTEM 4 FLOW DIRECTIONS
TYPE OF FLUID DIESEL
TEMPERATURE 16°C
DIMENSIONS

MATERIALS
• BODY: ALUMINIUM
• NUTATING DISK CHAMBER: TECHNOPOLYMER
100 128

104 ø34,1 1” bsp

176 62

Dimensions expressed in millimeters
TECHNICAL DATA
FLOW RATE PRESSURE PULSER
FLOW
CODE DESCRIPTION FLUIDS DIRECTION L/MIN GPM BAR PSI (P/GAL) INLET / OUTLET
P/L
TYPE
METERS
000550000 K33 VER. A D 20 - 120 5 - 32 10 142 - 1” BSP
000551000 K33 VER. B D 20 - 120 5 - 32 10 142 - 1” BSP
000552000 K33 VER. C D 20 - 120 5 - 32 10 142 - 1” BSP
000553000 K33 VER. D D 20 - 120 5 - 32 10 142 - 1” BSP
000560000 K44 VER. A D 20 - 120 5 - 32 10 142 - 1” BSP
000561000 K44 VER. B D 20 - 120 5 - 32 10 142 - 1” BSP
000562000 K44 VER. C D 20 - 120 5 - 32 10 142 - 1” BSP
000563000 K44 VER. D D 20 - 120 5 - 32 10 142 - 1” BSP
PULSER
00056500A K44 PULSER D 20 - 120 5 - 32 10 142 10 (38) 1” BSP
K33 / K44

MECHANICAL METERS 147
