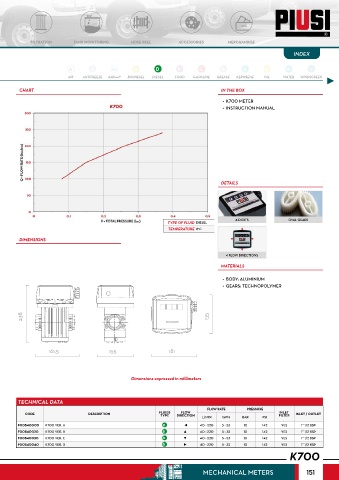

Page 151 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• K700 METER
• INSTRUCTION MANUAL

DETAILS

4-DIGITS OVAL GEARS
TYPE OF FLUID DIESEL
TEMPERATURE 8°C
DIMENSIONS

4 FLOW DIRECTIONS
MATERIALS
• BODY: ALUMINIUM
• GEARS: TECHNOPOLYMER

238 155

161,5 155 181

Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE PRESSURE
FLOW
INLET
CODE DESCRIPTION FLUIDS DIRECTION L/MIN GPM BAR PSI FILTER INLET / OUTLET
TYPE
F00540000 K700 VER. A D ◄ 40 - 220 5 - 53 10 142 YES 1” 1/2 BSP
F00540020 K700 VER. B D ▲ 40 - 220 5 - 32 10 142 YES 1” 1/2 BSP
F00540030 K700 VER. C D ▼ 40 - 220 5 - 53 10 142 YES 1” 1/2 BSP
F00540040 K700 VER. D D ► 40 - 220 5 - 32 10 142 YES 1” 1/2 BSP
K700

MECHANICAL METERS 151
