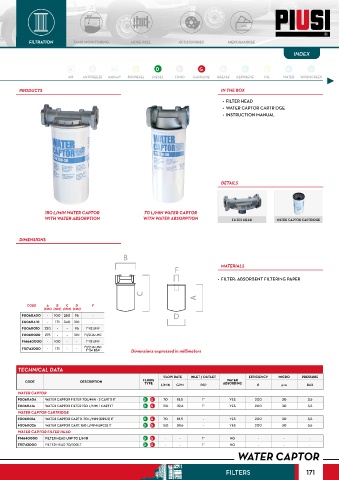

Page 171 - Piusi_Fuel

FILTRATION
FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

PRODUCTS
CHART IN THE BOX
• FILTER HEAD
• WATER CAPTOR CARTRIDGE
• INSTRUCTION MANUAL

DETAILS

150 L/MIN WATER CAPTOR 70 L/MIN WATER CAPTOR
WITH WATER ABSORPTION WITH WATER ABSORPTION FILTER HEAD WATER CAPTOR CARTRIDGE

DIMENSIONS

B

F MATERIALS
• FILTER: ABSORBENT FILTERING PAPER

C
A
CODE A B C D F
(MM) (MM) (MM) (MM)
D
F00611A00 - 100 280 95 -
F00611A10 - 171 340 120 -
F00611010 220 - - 95 1”-12 UNF B
F00611020 275 - - 120 1”1/2-16 UNF F
F14640000 - 100 - - 1”-12 UNF
F15743000 - 171 - - 1”1/2-16 UNF Dimensions expressed in millimeters
1”1/4 BSP
C
TECHNICAL DATA A
FLOW RATE INLET / OUTLET EFFICIENCY MICRO PRESSURE
WATER
CODE DESCRIPTION FLUIDS L/MIN D BSP ABSORBING ß µ m BAR
TYPE
GPM
WATER CAPTOR B
F00611A0A WATER CAPTOR FILTER 70L/MIN - 2 CARTD IT D G 70 18,5 1” YES 200 30 3,5
F00611A1A WATER CAPTOR FILTER 150 L/MIN 1 CART IT D G 150 F 1” YES 200 30 3,5
39,6
WATER CAPTOR CARTRIDGE
F0061101A WATER CAPTOR CARTD. 70 L/MIN (12PCS) IT D G 70 18,5 - YES 200 30 3,5
F0061102A WATER CAPTOR CART. 150 L/MIN (6PCS) IT D G 150 39,6 - YES 200 30 3,5
WATER CAPTOR FILTER HEAD C
A
F14640000 FILTER HEAD UNF 70 L/MIN D G - - 1” NO - - -
F15743000 FILTER HEAD 70/100LT D G - - 1” NO - - -
D WATER CAPTOR

FILTERS 171
