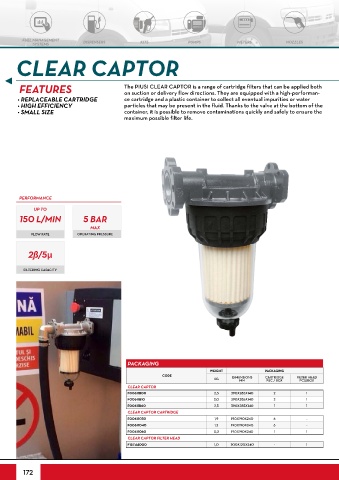

CLEAR CAPTOR

FEATURES The PIUSI CLEAR CAPTOR is a range of cartridge filters that can be applied both
on suction or delivery flow directions. They are equipped with a high-performan-
• REPLACEABLE CARTRIDGE ce cartridge and a plastic container to collect all eventual impurities or water
• HIGH EFFICIENCY particles that may be present in the fluid. Thanks to the valve at the bottom of the
• SMALL SIZE container, it is possible to remove contaminations quickly and safely to ensure the
maximum possible filter life.

PERFORMANCE
UP TO
150 L/MIN 5 BAR
MAX
FLOW RATE OPERATING PRESSURE

2ß/5µ

FILTERING CAPACITY

PACKAGING
WEIGHT PACKAGING
CODE
KG DIMENSIONS CARTRIDGE FILTER HEAD
MM
PSC / BOX
PCS/BOX
CLEAR CAPTOR
F00611B00 2,3 390X285X140 2 1
F00611B10 2,0 390X285X140 2 1
F00611B60 2,3 390X285X140 1 1
CLEAR CAPTOR CARTRIDGE
F00611030 1,9 190X190X240 6 -
F00611040 1,2 190X190X240 6 -
F00611060 0,2 190X190X240 1 1
CLEAR CAPTOR FILTER HEAD
F15744000 1,0 200X120X240 - 1

172
