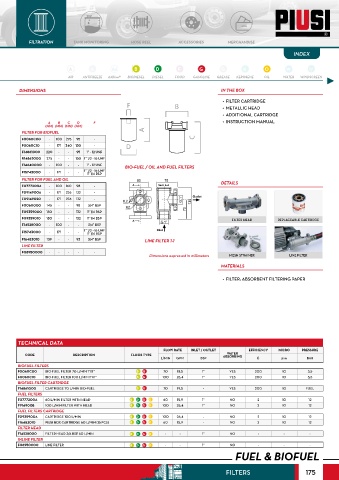

Page 175 - Piusi_Fuel

B
FILTRATION
FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
F B
INDEX
F
A A C Ad B A D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN
C
D A
DIMENSIONS IN THE BOX
CHART
B D
F B • FILTER CARTRIDGE
• METALLIC HEAD
• ADDITIONAL CARTRIDGE
F
A B C D F • INSTRUCTION MANUAL
(MM) (MM) (MM) (MM) C
FILTER FOR BIOFUEL A
F00611C00 - 100 275 95 - C A
F00611C10 - 171 340 130 - D
F14861000 220 - - 95 B 1” - 12 UNF
R14862000 275 - - 130 1” 1/2 - 16 UNF D
B
F
F14640000 - 100 - - 1” - 12 UNF BIO-FUEL / OIL AND FUEL FILTERS
F15743000 - 171 - - 1” 1/2 - 16 UNF
1” 1/4 BSP
FILTER FOR FUEL AND OIL F
F0777200A - 100 160 98 - C DETAILS
A
F0914900A - 171 236 132 -
C
F09149020 - 171 236 132 - A
F00611000 145 - - 98 3/4” BSP D
F09359000 180 - - 132 1” 1/4 BSP D
F09359010 180 - - 132 1” 1/4 BSP FILTER HEAD REPLACEABLE CARTRIDGE
F14528000 - 100 - - 3/4” BSP
F15743000 - 171 - - 1” 1/2 - 16 UNF
1” 1/4 BSP
DIMENSIONS 139 - - 93 3/4” BSP LINE FILTER 1-1
F16483010
LINE FILTER
F08950000 - - - - -
Dimensions expressed in millimeters MESH STRAINER LINE FILTER
MATERIALS
• FILTER: ABSORBENT FILTERING PAPER

TECHNICAL DATA
FLOW RATE INLET / OUTLET EFFICIENCY MICRO PRESSURE
WATER
CODE DESCRIPTION FLUIDS TYPE ABSORBING
L/MIN GPM BSP ß µ m BAR
BIOFUEL FILTERS
F00611C00 BIO-FUEL FILTER 70 L/MIN 1”X1” B G 70 18,5 1” YES 200 10 3,5
F00611C10 BIO-FUEL FILTER 100 L/MIN 1”X1” B G 100 26,4 1” YES 200 10 3,5
BIOFUEL FILTER CARTRIDGE
F14861000 CARTRIDGE 70 L/MIN BIO-FUEL B G 70 19,5 - YES 200 10 FUEL
FUEL FILTERS
F0777200A 60 L/MIN FILTER WITH HEAD B D G O 60 15,9 1” NO 2 10 12
F914900B 100 L/MIN FILTER WITH HEAD B D G O 100 26,4 1” NO 2 10 12
FUEL FILTERS CARTRIDGE
F0935900A CARTRIDGE 100 L/MIN B D G O 100 26,4 - NO 2 10 12
F16483010 PIUSI BOX CARTRIDGE 60 L/MIN (15 PCS) B D G O 60 15,9 - NO 2 10 12
FILTER HEAD
F14528000 FILTER HEAD 3/4 BSP 60 L/MIN B D G O - - 1” NO - - -
INLINE FILTER
F08950000 LINE FILTER B D G O - - 1” NO - - -
FUEL & BIOFUEL

FILTERS 175
