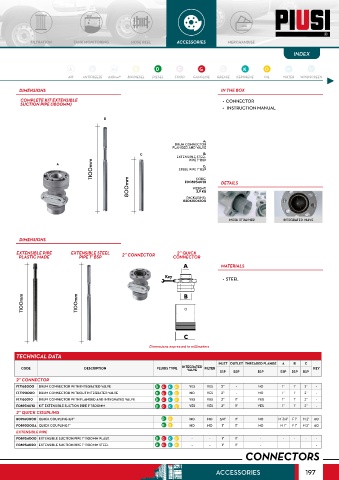

Page 197 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
ACCESSORIES
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

DIMENSIONS
CHART IN THE BOX
COMPLETE KIT EXTENSIBLE • CONNECTOR
SUCTION PIPE (1800MM)
• INSTRUCTION MANUAL

B

A:
DRUM CONNECTOR
FLANGED AND VALVE
C B:
EXTENSIBLE STEEL
PIPE 1” BSP
1100mm STEEL PIPE 1” BSP
A C:
800mm F008934010 DETAILS
CODE:
WEIGHT:
3,9 KG
PACKAGING:
820X150X100

MESH STRAINER INTEGRATED VALVE

DIMENSIONS

EXTENSIBLE PIPE EXTENSIBLE STEEL 2” QUICK
PLASTIC MADE PIPE 1” BSP 2” CONNECTOR CONNECTOR
MATERIALS
• STEEL

1100mm 1100mm

Dimensions expressed in millimeters
TECHNICAL DATA
INLET OUTLET THREADED FLANGE A B C
CODE DESCRIPTION FLUIDS TYPE INTEGRATED FILTER BSP BSP BSP BSP BSP BSP KEY
VALVE
2” CONNECTOR
F17163000 DRUM CONNECTOR WITH INTEGRATED VALVE D G K O YES YES 2” - NO 1” 1” 2” -
F17190000 DRUM CONNECTOR WITHOUT INTEGRATED VALVE D G K O NO YES 2” - NO 1” 1” 2” -
F17163010 DRUM CONNECTOR WITH FLANGED AND INTEGRATED VALVE D G K O YES YES 2” 1” YES 1” 1” 2” -
F08934010 KIT EXTENSIBLE SUCTION PIPE 1” 1800MM D G K O YES YES 2” 1” YES 1” 1” 2” -
2” QUICK COUPLING
R09160000 QUICK COUPLING 3/4” D O NO NO 3/4” 1” NO M 3/4” F 1” M 2” 60
F0893000A QUICK COUPLING 1” D O NO NO 1” 1” NO M 1” F 1” M 2” 60
EXTENSIBLE PIPE
F08934000 EXTENSIBLE SUCTION PIPE 1” 1100MM PLAST. D G K O - - 1” 1” - - - - -
F08934020 EXTENSIBLE SUCTION PIPE 1” 1100MM STEEL D G K O - - 1” 1” - - - - -
CONNECTORS
