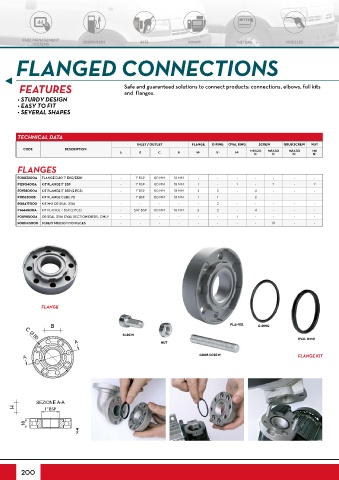

FLANGED CONNECTIONS

FEATURES Safe and guaranteed solutions to connect products: connections, elbows, full kits
and flanges.
• STURDY DESIGN
• EASY TO FIT
• SEVERAL SHAPES

TECHNICAL DATA
INLET / OUTLET FLANGE O-RING OVAL RING SCREW GRUB SCREW NUT
CODE DESCRIPTION
A B C H N° N° N° M8X20 M8X30 M8X50 M8
N°
N°
N°
N°
FLANGES
F0883200A FLANGE D.80 1” E80/E120 - 1” BSP 80 MM 18 MM - - - - - - -
F1290400A KIT FLANGE 1” BSP - 1” BSP 80 MM 18 MM 1 - 1 - 2 - 2
F0918000A KIT FLANGE 1” BSP (2 PCS) - 1” BSP 80 MM 18 MM 2 2 - 4 - - -
F1106200B KIT FLANGE CUBE 70 - 1” BSP 80 MM 18 MM 1 1 - 2 - - -
R08417000 KIT N°2 OR SEAL 3156 - - - - - 2 - - - - -
F1444500A KIT FLANGE ¾” BSP (2 PCS) - 3/4” BSP 80 MM 18 MM 2 2 - 4 - - -
F0898500A OR SEAL 3156 OVAL SECTION DIESEL ONLY - - - - - - 1 - - - -
F08043000 SCREW M8X30 N°10 PIECES - - - - - - - - 10 - -

FLANGE

B FLANGE O-RING
C
SCREW
OVAL RING
NUT
GRUB SCREW FLANGE KIT

1” BSP

H 1” BSP
