TECHNICAL DATA
DIMENSIONS FLANGE O-RING OVAL RING SCREW GRUB SCREW NUT
CODE DESCRIPTION
LENGTH N° N° N° M8X20 M8X30 M8X50 M8
N°
N°
N°
N°

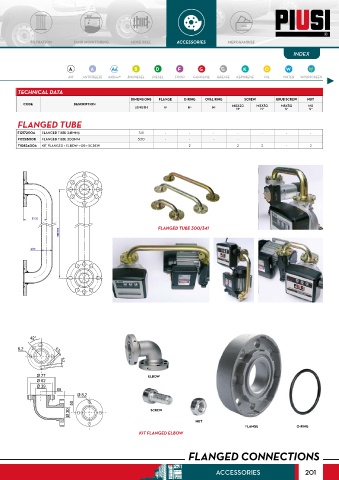

FLANGED TUBE
F1217200A FLANGED TUBE 341MM§ 341 - - - - - - -
F1222800B FLANGED TUBE 300MM 300 - - - - - - -
F1082400A KIT FLANGED + ELBOW + OR + SCREW - - 2 - 2 2 - 2


FLANGED TUBE 300/341
341/300



ELBOW

SCREW

NUT
FLANGE O-RING
KIT FLANGED ELBOW

FLANGED CONNECTIONS

ACCESSORIES 201
