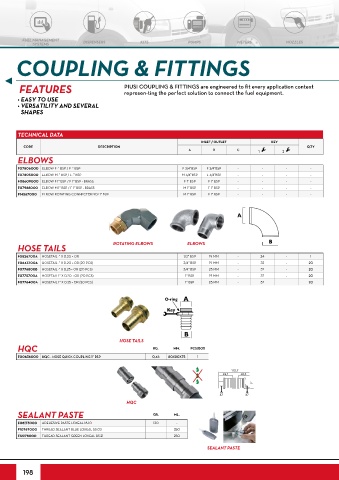

Page 198 - Piusi_Fuel

FUEL MANAGEMENT DISPENSERS KITS PUMPS METERS NOZZLES
SYSTEMS

COUPLING & FITTINGS

FEATURES PIUSI COUPLING & FITTINGS are engineered to fit every application context
represen-ting the perfect solution to connect the fuel equipment.
• EASY TO USE
• VERSATILITY AND SEVERAL
SHAPES

TECHNICAL DATA
INLET / OUTLET KEY
CODE DESCRIPTION Q.TY
A B C 1 2
ELBOWS
F07806000 ELBOW F ¾” BSP / F ¾” BSP F 3/4”BSP F 3/4”BSP - - - -
F07805000 ELBOW M ¾” BSP / F ¾” BSP M 3/4”BSP F 3/4”BSP - - - -
F08609000 ELBOW F 1” BSP / F 1” BSP - BRASS F 1” BSP F 1” BSP - - - -
F07988000 ELBOW M 1” BSP / F 1” BSP - BRASS M 1” BSP F 1” BSP - - - -
F14567000 ELBOW ROTATING CONNECTOR 90° 1” M/F M 1” BSP F 1” BSP - - - -

HOSE TAILS ROTATING ELBOWS ELBOWS

F0826700A HOSETAIL ½” X D.20 + OR 1/2” BSP 19 MM - 24 - 1
F0643700A HOSETAIL ¾” X D.20 + OR (20 PCS) 3/4” BSP 19 MM - 32 - 20
F0776800B HOSETAIL ¾” X D.25 + OR (20 PCS) 3/4” BSP 25 MM - 32 - 20
F0775700A HOSETAIL 1” X D.20 + OR (20 PCS) 1” BSP 19 MM - 37 - 20
F0776400A HOSETAIL 1” X D.25 + OR (20 PCS) 1” BSP 25 MM - 37 - 20

HOSE TAILS
HQC KG. MM. PCS/BOX

F00636000 HQC - HOSE QUICK COUPLING 1” BSP 0,46 80X80X75 1

1”
37 37
HQC
SEALANT PASTE GR. ML.
F08173000 ADEHESIVE PASTE LOXEAL 18-10 130 -
F10767000 THREAD SEALANT BLUE LOXEAL 55.03 250
F12278000 THREAD SEALANT GREEN LOXEAL 85.21 250

SEALANT PASTE

198
