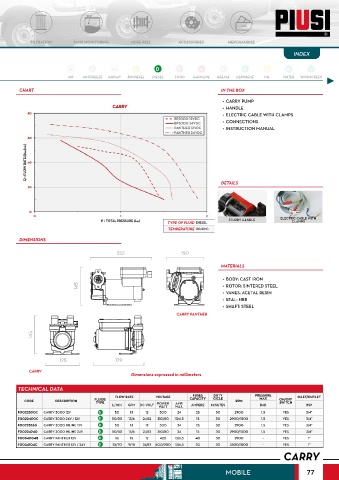

Page 77 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• CARRY PUMP
• HANDLE
• ELECTRIC CABLE WITH CLAMPS
• CONNECTIONS
• INSTRUCTION MANUAL

DETAILS

STURDY HANDLE ELECTRIC CABLE WITH
TYPE OF FLUID DIESEL CLAMPS
TEMPERATURE 20-22°C
DIMENSIONS
252 150

MATERIALS
• BODY: CAST IRON
145 • ROTOR: SINTERED STEEL
• VANES: ACETAL RESIN
• SEAL: NBR
• SHAFT: STEEL
CARRY PANTHER

145

125 179

CARRY
Dimensions expressed in millimeters
TECHNICAL DATA
DUTY
FUSES
FLOW RATE VOLTAGE CAPACITY CICLE PRESSURE INLET/OUTLET
MAX
CODE DESCRIPTION FLUIDS RPM ON/OFF
SWITCH
TYPE
L/MIN GPM DC VOLT POWER AMP. AMPERE MINUTES BAR BSP
WATT
MAX.
F0022300C CARRY 3000 12V D 50 13 12 300 24 25 30 2900 1,5 YES 3/4”
F0022400C CARRY 3000 24V / 12V D 50/30 13/6 24/12 310/80 13/6,5 15 30 2900/1500 1,5 YES 3/4”
F00223260 CARRY 3000 INLINE 12V D 50 13 12 300 24 25 30 2900 1,5 YES 3/4”
F00224240 CARRY 3000 INLINE 24V D 50/30 13/6 24/12 310/80 24 15 30 2900/1500 1,5 YES 3/4”
F0034004B CARRY PANTHER 12V D 56 15 12 420 13/6,5 40 30 2900 - YES 1”
F0034104C CARRY PANTHER 12V / 24V D 35/70 9/18 24/12 600/200 13/6,5 30 30 3500/1800 - YES 1”
CARRY
MOBILE 77
