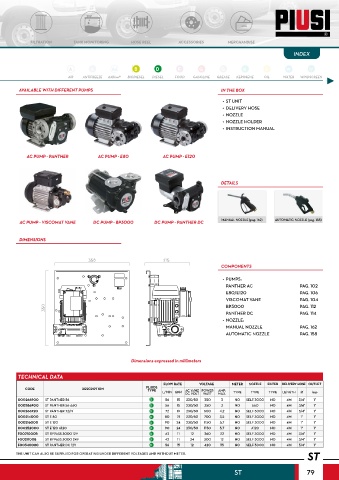

Page 79 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

AVAILABLE WITH DIFFERENT PUMPS IN THE BOX
CHART
• ST UNIT
• DELIVERY HOSE
• NOZZLE
• NOZZLE HOLDER
• INSTRUCTION MANUAL

AC PUMP - PANTHER AC PUMP - E80 AC PUMP - E120

DETAILS

AC PUMP - VISCOMAT VANE DC PUMP - BP3000 DC PUMP - PANTHER DC MANUAL NOZZLE (pag. 162) AUTOMATIC NOZZLE (pag. 158)

DIMENSIONS

356 215
MATERIALS
COMPONENTS
• PUMPS:
PANTHER AC PAG. 102
E80/E120 PAG. 106
VISCOMAT VANE PAG. 104
350 BP3000 PAG. 112
PANTHER DC PAG. 114
• NOZZLE:
MANUAL NOZZLE PAG. 162
AUTOMATIC NOZZLE PAG. 158

Dimensions expressed in millimeters

TECHNICAL DATA
FLOW RATE VOLTAGE METER NOZZLE FILTER DELIVERY HOSE OUTLET
CODE DESCRIPTION FLUIDS L/MIN GPM DC VOLT WATT AMP. TYPE TYPE TYPE LENGTH Ø bsp
AC V./HZ POWER
TYPE
MAX.
000266P00 ST PANTHER 56 D 56 15 230/50 350 3 NO SELF 3000 NO 4M 3/4” 1”
000286P00 ST PANTHER 56 A60 D 56 15 230/50 350 3 NO A60 NO 4M 3/4” 1”
000266P20 ST PANTHER 72/M D 72 19 230/50 500 4,2 NO SELF 3000 NO 4M 3/4” 1”
000214000 ST E 80 D 80 21 230/50 700 3,5 NO SELF 3000 NO 4M 1” 1”
000216000 ST E 120 D 90 24 230/50 1150 5,7 NO SELF 3000 NO 4M 1” 1”
000252000 ST E 120 A120 D 90 24 230/50 1150 5,7 NO A120 NO 4M 1” 1”
F0021000B ST BYPASS 3000 12V D 42 11 12 260 22 NO SELF 3000 NO 4M 3/4” 1”
F0021100B ST BYPASS 3000 24V D 42 11 24 300 12 NO SELF 3000 NO 4M 3/4” 1”
F00340080 ST PANTHER DC 12V D 56 15 12 420 35 NO SELF 3000 NO 4M 3/4” 1”
ST
THE UNIT CAN ALSO BE SUPPLIED FOR OPERATING UNDER DIFFERENT VOLTAGES AND WITHOUT METER.

ST 79
