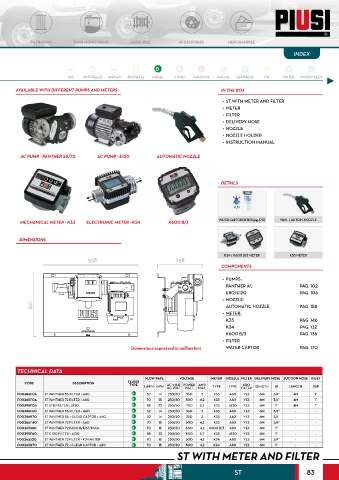

Page 83 - Piusi_Fuel

FILTRATION TANK MONITORING HOSE REEL ACCESSORIES MERCHANDISE
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART
AVAILABLE WITH DIFFERENT PUMPS AND METERS IN THE BOX
• ST WITH METER AND FILTER
• METER
• FILTER
• DELIVERY HOSE
• NOZZLE
• NOZZLE HOLDER
• INSTRUCTION MANUAL

AC PUMP - PANTHER 56/72 AC PUMP - E120 AUTOMATIC NOZZLE

DETAILS

MECHANICAL METER - K33 ELECTRONIC METER - K24 K600 B/3 WATER CAPTOR FILTER (pag. 170) MAN. / AUTOM. NOZZLE

DIMENSIONS

K24 / K600 B/3 METER K33 METER
538 258
MATERIALS
COMPONENTS
• PUMPS:
PANTHER AC PAG. 102
E80/E120 PAG. 106
• NOZZLE:
357 AUTOMATIC NOZZLE PAG. 158
• METER:
K33 PAG. 146
K24 PAG. 132
K600 B/3 PAG. 136
• FILTER
Dimensions expressed in millimeters WATER CAPTOR PAG. 170

TECHNICAL DATA
FLOW RATE VOLTAGE METER NOZZLE FILTER DELIVERY HOSE SUCTION HOSE INLET
CODE DESCRIPTION FLUIDS L/MIN GPM AC V./HZ POWER AMP. TYPE TYPE FILTER LENGTH Ø LENGTH BSP
TYPE
H20
DC VOLT
WATT
MAX.
F00386F0A ST PANTHER 56 FILTER + A60 D 52 14 230/50 350 3 K33 A60 YES 6M 3/4” 4M 1”
F00265F0A ST PANTHER 72 FILTER + A60 D 70 18 230/50 500 4,2 K33 A60 YES 6M 3/4” 4M 1”
F00395F0A ST E120 FILTER + A120 D 85 22 230/50 1150 5,7 K33 A120 YES 6M 1” 4M 1”
F00386F60 ST PANTHER 56 FILTER + A60 D 52 14 230/50 350 3 K33 A60 YES 6M 3/4” - -
F00386R70 ST PANTHER 56 + CLEAR CAPTOR + A60 D 52 14 230/50 350 3 K33 A60 YES 6M 3/4” - -
F00265F40 ST PANTHER 72 FILTER + A60 D 70 18 230/50 500 4,2 K33 A60 YES 6M 3/4” - -
F00265S80 ST PANTHER 72 K600 B/F/6T/PA60 D 70 18 230/50 500 4,2 K600 B/3 A60 YES 6M 1” - -
F00395F60 ST E 120 FILTER + A120 D 85 22 230/50 1150 5,7 K33 A120 YES 6M 1” - -
F00265S20 ST PANTHER 72 FILTER + K24 METER D 70 18 230/50 500 4,2 K24 A80 YES 6M 3/4” - -
F00265R70 ST PANTHER 72 + CLEAR CAPTOR + A80 D 70 18 230/50 500 4,2 K24 A80 YES 6M 1” - -
ST WITH METER AND FILTER

ST 83
