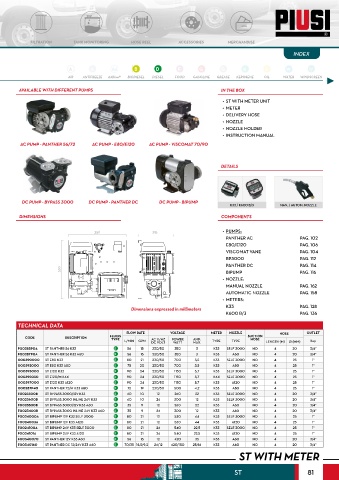

CHART
AVAILABLE WITH DIFFERENT PUMPS IN THE BOX
• ST WITH METER UNIT
• METER
• DELIVERY HOSE
• NOZZLE
• NOZZLE HOLDER
• INSTRUCTION MANUAL
AC PUMP - PANTHER 56/72 AC PUMP - E80/E120 AC PUMP - VISCOMAT 70/90

DETAILS

DC PUMP - BYPASS 3000 DC PUMP - PANTHER DC DC PUMP - BIPUMP
METALLIC BOX (optional) K33 / K600 B/3 MAN. / AUTOM. NOZZLE
DIMENSIONS COMPONENTS

356 215 • PUMPS:
PANTHER AC PAG. 102
E80/E120 PAG. 106
VISCOMAT VANE PAG. 104
BP3000 PAG. 112
PANTHER DC PAG. 114
350 BIPUMP PAG. 116
• NOZZLE:
MANUAL NOZZLE PAG. 162
AUTOMATIC NOZZLE PAG. 158
• METERS:
K33 PAG. 128
Dimensions expressed in millimeters
K600 B/3 PAG. 136
TECHNICAL DATA
FLOW RATE VOLTAGE METER NOZZLE HOSE OUTLET
CODE DESCRIPTION FLUIDS L/MIN GPM AC V./HZ POWER AMP. TYPE TYPE SUCTION LENGTH (M) Ø (MM) bsp
TYPE
HOSE
MAX.
DC VOLT
WATT
F00385P0A ST PANTHER 56 K33 D 56 15 230/50 350 3 K33 SELF 3000 NO 4 20 3/4”
F00287P0A ST PANTHER 56 K33 A60 D 56 15 230/50 350 3 K33 A60 NO 4 20 3/4”
000390000 ST E80 K33 D 80 21 230/50 700 3,5 K33 SELF 3000 NO 4 25 1”
000392000 ST E80 K33 A80 D 75 20 230/50 700 3,5 K33 A80 NO 4 25 1”
000395000 ST E120 K33 D 90 24 230/50 1150 5,7 K33 SELF 3000 NO 4 25 1”
000395050 ST E120/M K44 D 90 24 230/50 1150 5,7 K44 SELF 3000 NO 4 25 1”
000397000 ST E120 K33 A120 D 90 24 230/50 1150 5,7 K33 A120 NO 4 25 1”
000287P40 ST PANTHER 72/M K33 A80 D 72 19 230/50 500 4,2 K33 A80 NO 4 25 1”
F0023500B ST BYPASS 3000/12V K33 D 40 10 12 260 22 K33 SELF 3000 NO 4 20 3/4”
F0023600B ST BYPASS 3000 INLINE 24V K33 D 40 10 24 300 12 K33 SELF 3000 NO 4 20 3/4”
F0023300B ST BYPASS 3000/12V K33 A60 D 35 9 12 260 22 K33 A60 NO 4 20 3/4”
F0023400B ST BYPASS 3000 INLINE 24V K33 A60 D 35 9 24 300 12 K33 A60 NO 4 20 3/4”
F0024000A ST BIPUMP 12V K33 SELF 3000 D 80 21 12 530 44 K33 SELF 3000 NO 4 25 1”
F0024003A ST BIPUMP 12V K33 A120 D 80 21 12 530 44 K33 A120 NO 4 25 1”
F0024100A ST BIPUMP 24V K33 SELF 3000 D 80 21 24 540 22,5 K33 SELF 3000 NO 4 25 1”
F0024101A ST BIPUMP 24V K33 A120 D 80 21 24 540 22,5 K33 A120 NO 4 25 1”
F00340070 ST PANTHER 12V K33 A60 D 56 15 12 420 35 K33 A60 NO 4 20 3/4”
F00340160 ST PANTHER DC 12/24V K33 A60 D 70/35 18,5/9,2 24/12 420/150 25/16 K33 A60 NO 4 20 3/4”
ST WITH METER

ST 81
