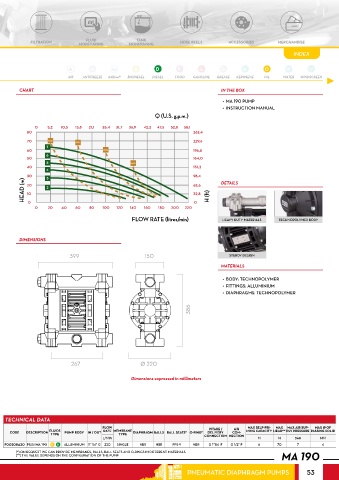

Page 53 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• MA 190 PUMP
• INSTRUCTION MANUAL
Q (U.S. g.p.m.)
0 5,2 10,5 15,8 21,1 26,4 31,7 36,9 42,2 47,5 52,8 58,1
80 262,4
70 700 900 229,6
7
60 1300 196,8
6
50 164,0
5 1600
40 131,2
4
30 3 98,4 DETAILS
HEAD (m) 20 2 65,6 H (ft)
32,8
10
0
0 20 40 60 80 100 120 140 160 180 200 220 0
FLOW RATE (litres/min) HEAVY DUTY MATERIALS TECHNOPOLYMER BODY

DIMENSIONS

399 150 STURDY DESIGN

MATERIALS
• BODY: TECHNOPOLYMER
• FITTINGS: ALLUMINIUM
• DIAPHRAGMS: TECHNOPOLYMER

386

267 Ø 220

Dimensions expressed in millimeters

TECHNICAL DATA
FLOW INTAKE / AIR MAX SELF-PRI- MAX MAX AIR SUP- MAX Ø OF
CODE DESCRIPTION FLUIDS PUMP BODY IN / OUT RATE MEMBRANE DIAPHRAGM BALLS BALL SEATS* O-RING* DELIVERY CON- MING CAPACITY HEAD** PLY PRESSURE PASSING SOLID
TYPE
TYPE
L/MIN CONNECTION NECTION M M BAR MM
F00208A20 PIUSI MA 190 O O D D ALLUMINIUM 1” 1/4” G 220 SINGLE NBR NBR PPS-V NBR G 1”1/4 F G 1/2” F 6 70 7 4
(*) ON REQUEST WE CAN PROVIDE MEMBRANES, BALLS, BALL SEATS AND O-RINGS IN DIFFERENT MATERIALS.
(**) THE VALUE DEPENDS ON THE CONFIGURATION OF THE PUMP MA 190

PNEUMATIC DIAPHRAGM PUMPS 53
