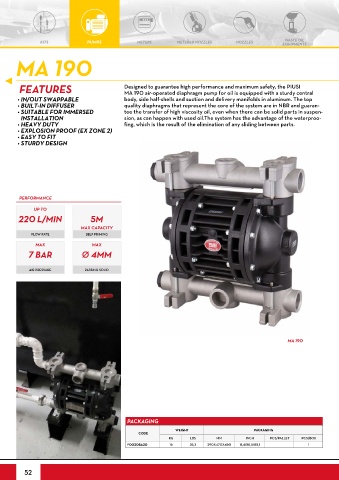

MA 190

FEATURES Designed to guarantee high performance and maximum safety, the PIUSI
MA 190 air-operated diaphragm pump for oil is equipped with a sturdy central
• IN/OUT SWAPPABLE body, side half-shells and suction and delivery manifolds in aluminum. The top
• BUILT-IN DIFFUSER quality diaphragms that represent the core of the system are in NBR and guaran-
• SUITABLE FOR IMMERSED tee the transfer of high viscosity oil, even when there can be solid parts in suspen-
INSTALLATION sion, as can happen with used oil.The system has the advantage of the waterproo-
• HEAVY DUTY fing, which is the result of the elimination of any sliding between parts.
• EXPLOSION PROOF (EX ZONE 2)
• EASY TO FIT
• STURDY DESIGN

PERFORMANCE
UP TO
220 L/MIN 5M
MAX CAPACITY
FLOW RATE SELF PRIMING
MAX MAX
7 BAR Ø 4MM

AIR PRESSURE PASSING SOLID

MA 190

PACKAGING
WEIGHT PACKAGING
CODE
KG LBS MM INCH PCS/PALLET PCS/BOX
F00208A20 16 35,3 290X470X460 11,4X18,5X18,1 1
