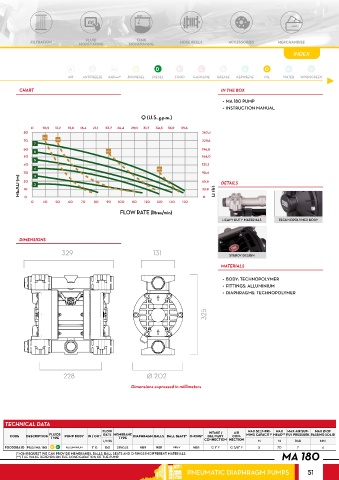

Page 51 - Piusi_Lube

FILTRATION FLUID TANK HOSE REELS ACCESSORIES MERCHANDISE
MONITORING MONITORING
INDEX

A A Ad B D F G R G K O W W S
AIR ANTIFREEZE AdBlue® BIODIESEL DIESEL FOOD GASOLINE GREASE KEROSENE OIL WATER WINDSCREEN

CHART IN THE BOX

• MA 180 PUMP
• INSTRUCTION MANUAL
Q (U.S. g.p.m.)

0 10,5 13,2 15,8 18,4 21,1 23,7 26,4 29,0 31,7 34,3 36,9 39,6
80 262,4
350
70 700 229,6
7
60 196,8
6 1100
50 164,0
5
40 131,2
4 1400
30 3 98,4
HEAD (m) 20 2 65,6 H (ft) DETAILS
32,8
10
0
0 40 50 60 70 80 90 100 110 120 130 140 150 0
FLOW RATE (litres/min)
HEAVY DUTY MATERIALS TECHNOPOLYMER BODY

DIMENSIONS
329 131 STURDY DESIGN

MATERIALS
• BODY: TECHNOPOLYMER
• FITTINGS: ALLUMINIUM
• DIAPHRAGMS: TECHNOPOLYMER

325

228 Ø 202
Dimensions expressed in millimeters

TECHNICAL DATA
FLOW INTAKE / AIR MAX SELF-PRI- MAX MAX AIR SUP- MAX Ø OF
CODE DESCRIPTION FLUIDS PUMP BODY IN / OUT RATE MEMBRANE DIAPHRAGM BALLS BALL SEATS* O-RING* DELIVERY CON- MING CAPACITY HEAD** PLY PRESSURE PASSING SOLID
TYPE
TYPE
L/MIN CONNECTION NECTION M M BAR MM
F00208A10 PIUSI MA 180 O D ALLUMINIUM 1” G 150 SINGLE NBR NBR PPS-V NBR G 1” F G 3/8” F 5 70 7 4
(*) ON REQUEST WE CAN PROVIDE MEMBRANES, BALLS, BALL SEATS AND O-RINGS IN DIFFERENT MATERIALS. MA 180
(**) THE VALUE DEPENDS ON THE CONFIGURATION OF THE PUMP
PNEUMATIC DIAPHRAGM PUMPS 51
