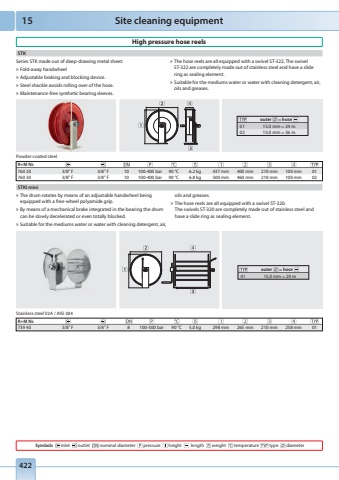

15422STKSTKI miniSeries STK made out of deep-drawing metal sheet:%u00bb Fold-away handwheel%u00bb Adjustable braking and blocking device.%u00bb Steel shackle avoids rolling over of the hose.%u00bb Maintenance-free synthetic bearing sleeves.%u00bb The hose reels are all equipped with a swivel ST-322. The swivel ST-322 are completely made out of stainless steel and have a slide ring as sealing element.%u00bb Suitable for the mediums water or water with cleaning detergent, air, oils and greases.Powder-coated steelR+M Nr.760 20 3/8\3/8\10 100-400 bar 90 %u00b0C 6.2 kg 437 mm 400 mm 210 mm 100 mm 01760 30 3/8\3/8\10 100-400 bar 90 %u00b0C 6.8 kg 500 mm 460 mm 210 mm 100 mm 02outer = hose 01 15.0 mm = 24 m 02 15.0 mm = 36 mHigh pressure hose reelsSite cleaning equipmentouter = hose 01 15,0 mm = 20 mR+M Nr.739 40 3/8\3/8\8 100-300 bar 90 %u00b0C 5,0 kg 298 mm 265 mm 210 mm 258 mm 01Stainless steel V2A / AISI 304%u00bb The drum rotates by means of an adjustable handwheel being equipped with a free-wheel polyamide grip.%u00bb By means of a mechanical brake integrated in the bearing the drum can be slowly decelerated or even totally blocked.%u00bb Suitable for the mediums water or water with cleaning detergent, air, oils and greases.%u00bb The hose reels are all equipped with a swivel ST-320. The swivels ST-320 are completely made out of stainless steel and have a slide ring as sealing element.Symbols inlet outlet nominal diameter pressure height length weight temperature type diameter
