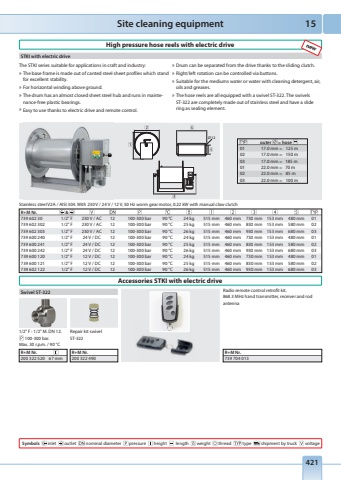

154215%u00d8125%u00d8125%u00d812Symbols inlet outlet nominal diameter pressure height length weight thread type shipment by truck voltageSite cleaning equipmentSTKI with electric driveHigh pressure hose reels with electric driveThe STKI series suitable for applications in craft and industry:%u00bb The base frame is made out of canted steel sheet profiles which stand for excellent stability. %u00bb For horizontal winding above ground.%u00bb The drum has an almost closed sheet steel hub and runs in maintenance-free plastic bearings.%u00bb Easy to use thanks to electric drive and remote control.%u00bb Drum can be separated from the drive thanks to the sliding clutch.%u00bb Right/left rotation can be controlled via buttons.%u00bb Suitable for the mediums water or water with cleaning detergent, air, oils and greases.%u00bb The hose reels are all equipped with a swivel ST-322. The swivels ST-322 are completely made out of stainless steel and have a slide ring as sealing element.newRepair kit swivel ST-3221/2\100-300 bar. Max. 30 r.p.m. / 90 %u00b0CSwivel ST-322R+M Nr.200 322 490R+M Nr.200 322 520 67 mmouter = hose 01 17.0 mm = 125 m 02 17.0 mm = 150 m 03 17.0 mm = 185 m 01 22.0 mm = 70 m 02 22.0 mm = 85 m 03 22.0 mm = 100 mAccessories STKI with electric driveRadio remote control retrofit kit.868.3 MHz hand transmitter, receiver and rod antennaR+M Nr. 739 704 013R+M Nr. & 739 602 30 1/2\230 V / AC 12 100-300 bar 90 %u00b0C 24 kg 515 mm 460 mm 730 mm 153 mm 480 mm 01739 602 302 1/2\230 V / AC 12 100-300 bar 90 %u00b0C 25 kg 515 mm 460 mm 830 mm 153 mm 580 mm 02739 602 303 1/2\230 V / AC 12 100-300 bar 90 %u00b0C 26 kg 515 mm 460 mm 930 mm 153 mm 680 mm 03739 600 240 1/2\24 V / DC 12 100-300 bar 90 %u00b0C 24 kg 515 mm 460 mm 730 mm 153 mm 480 mm 01739 600 241 1/2\24 V / DC 12 100-300 bar 90 %u00b0C 25 kg 515 mm 460 mm 830 mm 153 mm 580 mm 02739 600 242 1/2\24 V / DC 12 100-300 bar 90 %u00b0C 26 kg 515 mm 460 mm 930 mm 153 mm 680 mm 03739 600 120 1/2\12 V / DC 12 100-300 bar 90 %u00b0C 24 kg 515 mm 460 mm 730 mm 153 mm 480 mm 01739 600 121 1/2\12 V / DC 12 100-300 bar 90 %u00b0C 25 kg 515 mm 460 mm 830 mm 153 mm 580 mm 02739 602 122 1/2\12 V / DC 12 100-300 bar 90 %u00b0C 26 kg 515 mm 460 mm 930 mm 153 mm 680 mm 03Stainless steel V2A / AISI 304. With 230 V / 24 V / 12 V, 50 Hz worm gear motor, 0.22 kW with manual claw clutch
