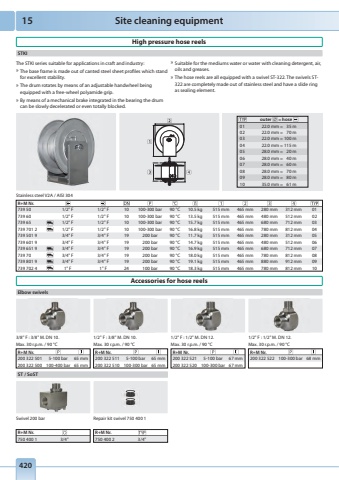

15420Site cleaning equipmentSTKIR+M Nr.750 400 1 3/4\R+M Nr.750 400 2 3/4\High pressure hose reelsThe STKI series suitable for applications in craft and industry:%u00bb The base frame is made out of canted steel sheet profiles which stand for excellent stability.%u00bb The drum rotates by means of an adjustable handwheel being equipped with a free-wheel polyamide grip.%u00bb By means of a mechanical brake integrated in the bearing the drum can be slowly decelerated or even totally blocked.%u00bb Suitable for the mediums water or water with cleaning detergent, air, oils and greases.%u00bb The hose reels are all equipped with a swivel ST-322. The swivels ST322 are completely made out of stainless steel and have a slide ring as sealing element.Accessories for hose reelsST / SoSTElbow swivelsStainless steel V2A / AISI 304R+M Nr.739 50 1/2\1/2\10 100-300 bar 90 %u00b0C 10.5 kg 515 mm 465 mm 280 mm 312 mm 01739 60 1/2\1/2\10 100-300 bar 90 %u00b0C 13.5 kg 515 mm 465 mm 480 mm 512 mm 02739 65 1/2\1/2\10 100-300 bar 90 %u00b0C 15.7 kg 515 mm 465 mm 680 mm 712 mm 03739 701 2 1/2\1/2\10 100-300 bar 90 %u00b0C 16.8 kg 515 mm 465 mm 780 mm 812 mm 04739 501 9 3/4\3/4\19 200 bar 90 %u00b0C 11.7 kg 515 mm 465 mm 280 mm 312 mm 05739 601 9 3/4\3/4\19 200 bar 90 %u00b0C 14.7 kg 515 mm 465 mm 480 mm 512 mm 06739 651 9 3/4\3/4\19 200 bar 90 %u00b0C 16.9 kg 515 mm 465 mm 680 mm 712 mm 07739 70 3/4\3/4\19 200 bar 90 %u00b0C 18.0 kg 515 mm 465 mm 780 mm 812 mm 08739 801 9 3/4\3/4\19 200 bar 90 %u00b0C 19.1 kg 515 mm 465 mm 880 mm 912 mm 09739 702 4 1\ F 1\ F 24 100 bar 90 %u00b0C 18.3 kg 515 mm 465 mm 780 mm 812 mm 10outer = hose 01 22.0 mm = 35 m 02 22.0 mm = 70 m 03 22.0 mm = 100 m 04 22.0 mm = 115 m 05 28.0 mm = 20 m 06 28.0 mm = 40 m 07 28.0 mm = 60 m 08 28.0 mm = 70 m 09 28.0 mm = 80 m 10 35.0 mm = 61 mSwivel 200 bar Repair kit swivel 750 400 13/8\Max. 30 r.p.m. / 90 %u00b0C1/2\Max. 30 r.p.m. / 90 %u00b0C1/2\Max. 30 r.p.m. / 90 %u00b0C1/2\Max. 30 r.p.m. / 90 %u00b0CR+M Nr.200 322 522 100-300 bar 68 mmR+M Nr.200 322 501 5-100 bar 65 mm200 322 500 100-400 bar 65 mmR+M Nr.200 322 511 5-100 bar 65 mm 200 322 510 100-300 bar 65 mmR+M Nr.200 322 521 5-100 bar 67 mm 200 322 520 100-300 bar 67 mm
