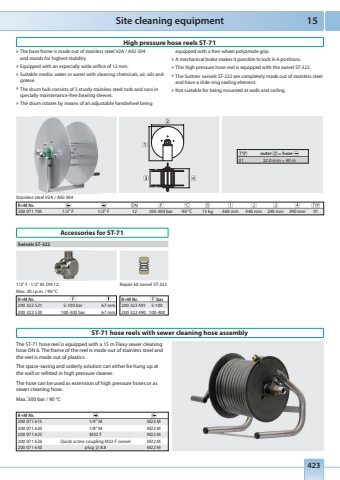

15423Site cleaning equipmentST-71 hose reels with sewer cleaning hose assemblyR+M Nr.200 071 615 1/4\M22 M200 071 620 1/8\M22 M200 071 625 M22 F M22 M200 071 626 Quick screw coupling M22 F swivel M22 M200 071 630 plug 8.8 M22 MThe ST-71 hose reel is equipped with a 15 m Flexy sewer cleaning hose DN 6. The frame of the reel is made out of stainless steel and the reel is made out of plastics.The space-saving and orderly solution can either be hung up at the wall or refitted in high pressure cleaner. The hose can be used as extension of high pressure hoses or as sewer cleaning hose. Max. 300 bar / 90 %u00b0CHigh pressure hose reels ST-71outer = hose 01 22.0 mm = 40 mStainless steel V2A / AISI 304Swivels ST-322Accessories for ST-71Repair kit swivel ST-322%u00bb The base frame is made out of stainless steel V2A / AISI 304 and stands for highest stability.%u00bb Equipped with an especially wide orifice of 12 mm.%u00bb Suitable media: water or water with cleaning chemicals, air, oils and grease.%u00bb The drum hub consists of 5 sturdy stainless steel rods and runs inspecially maintenance-free bearing sleeves.%u00bb The drum rotates by means of an adjustable handwheel being equipped with a free-wheel polyamide grip. %u00bb A mechanical brake makes it possible to lock in 6 positions.%u00bb This high pressure hose reel is equipped with the swivel ST-322. %u00bb The Suttner swivels ST-322 are completely made out of stainless steel and have a slide-ring sealing element.%u00bb Not suitable for being mounted at walls and ceiling.1/2\Max. 30 r.p.m. / 90 %u00b0CR+M Nr. 200 071 705 1/2\1/2\12 100-300 bar 90 %u00b0C 13 kg 460 mm 440 mm 240 mm 290 mm 01R+M Nr.200 322 521 5-100 bar 67 mm 200 322 520 100-300 bar 67 mmR+M Nr. bar200 322 491 5-100200 322 490 100-400
